A high-flex shielded drag chain cable combining servo motor power conductors and feedback signal pairs in one compact construction. Designed for continuous movement in industrial automation equipment.
The integrated construction reduces cable quantity while maintaining flexible movement, stable power delivery and dependable feedback signal transmission.
Power conductors, protective earth and feedback signal pairs are combined inside one outer jacket.
Fine-stranded conductors and reinforced filling support repeated bending inside industrial drag chains.
Twisted-pair feedback conductors use dedicated shielding to support stable signal transmission.
The special flexible PVC compound provides flame, abrasion, corrosion and temperature resistance.
The following image positions are intended for your real product photographs. No rendered industrial scenes or fictional equipment images are used.

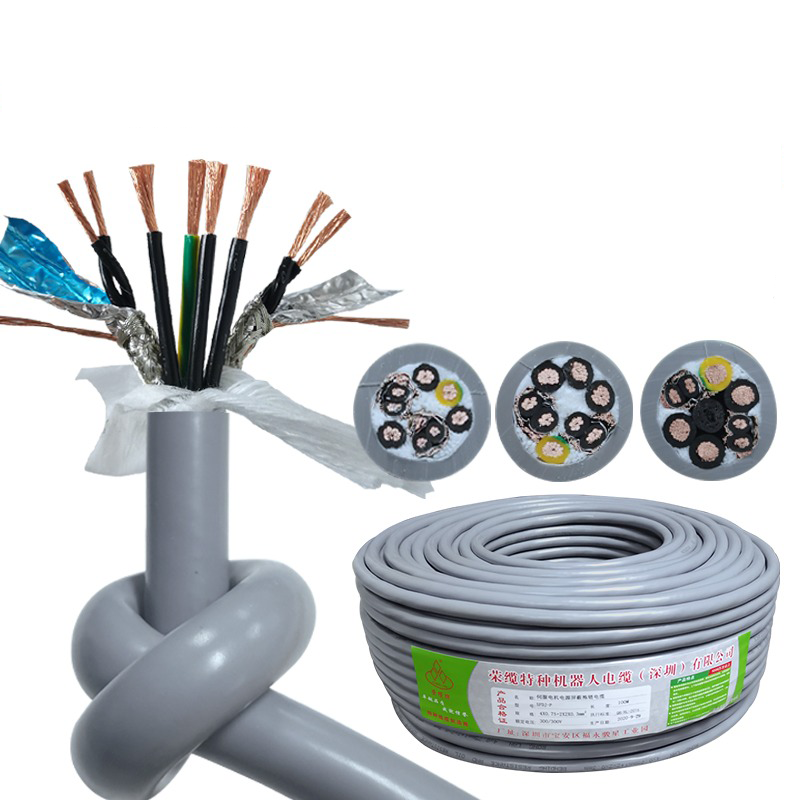

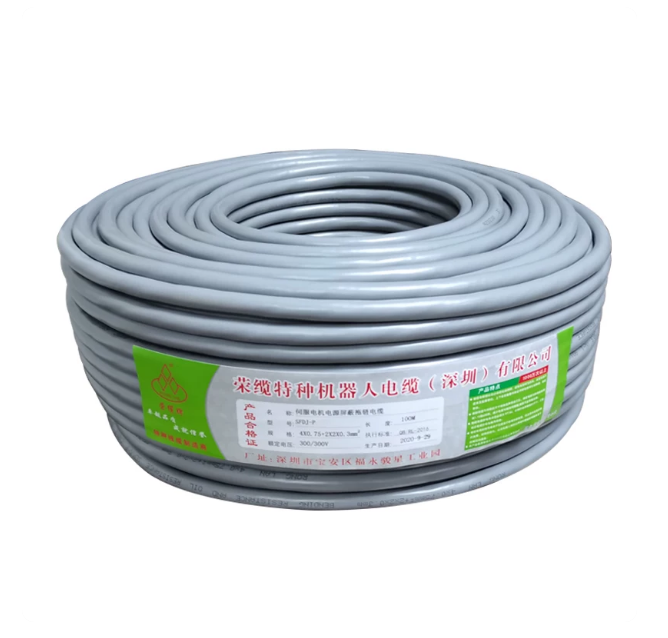

Real finished cable showing the smooth flexible PVC jacket and coiled product appearance.

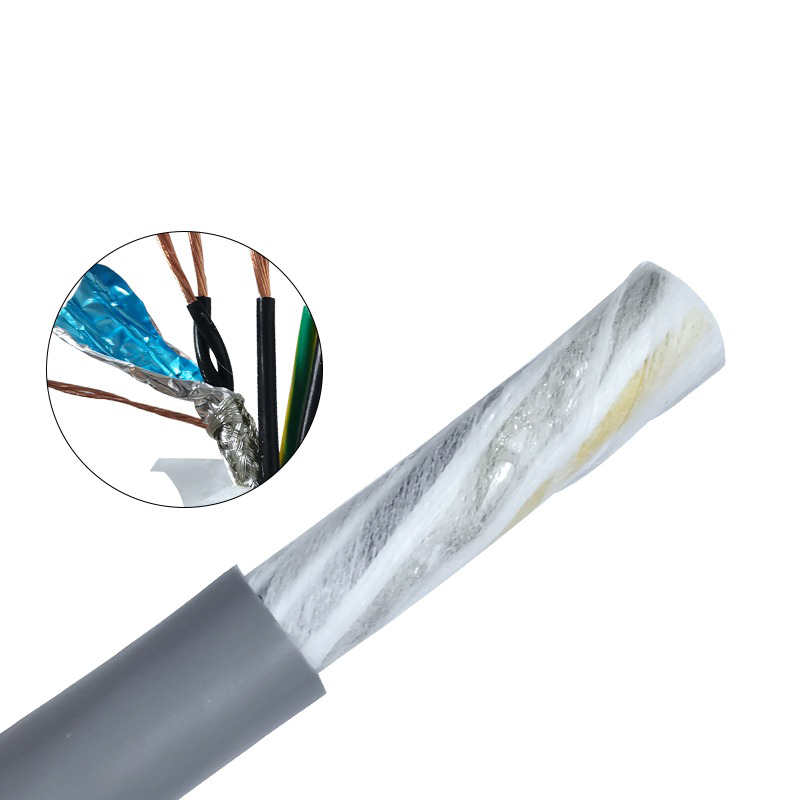

Real cable end showing power conductors, twisted feedback pairs, filling, wrapping and shielding layers.

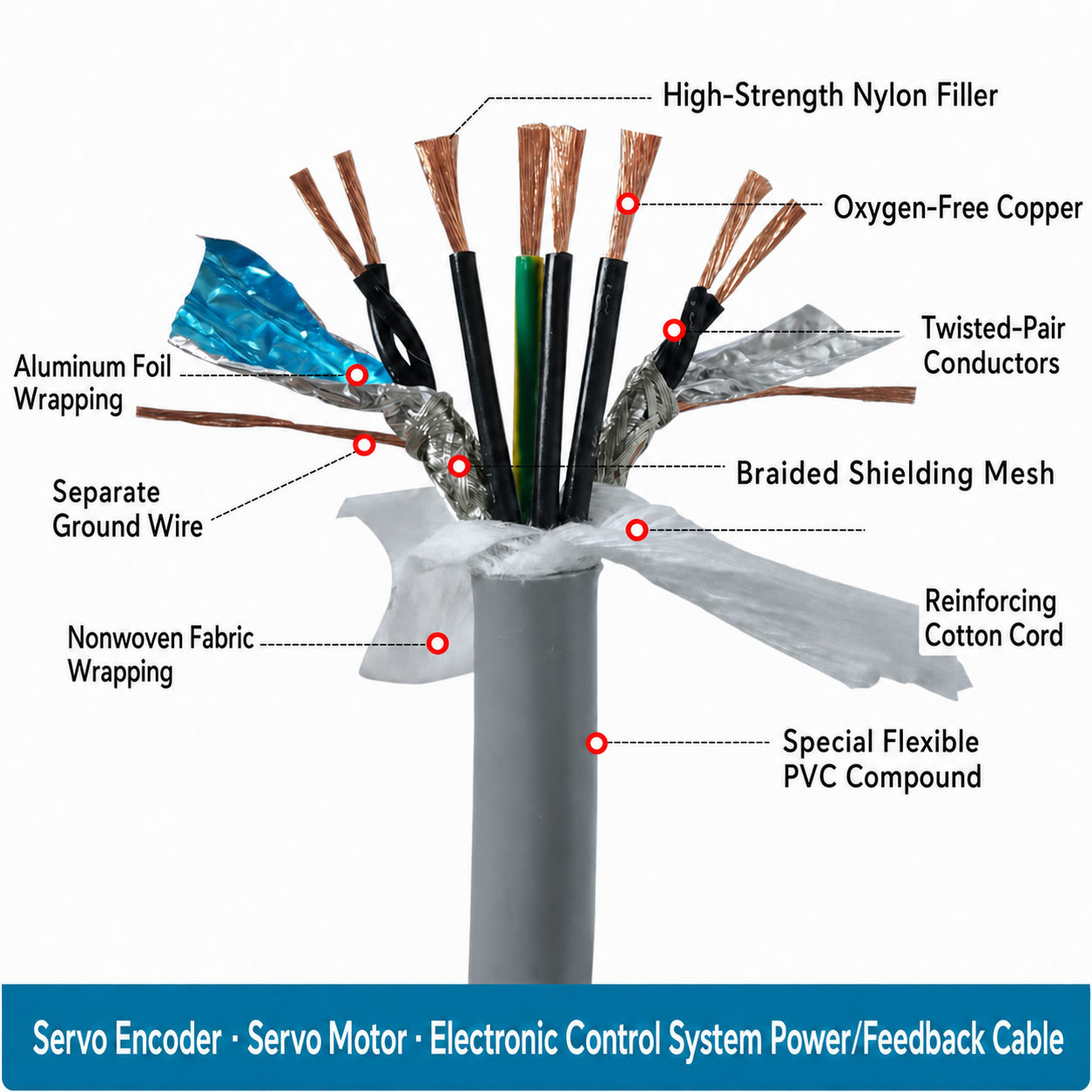

The cable combines servo motor power conductors, protective grounding, twisted feedback pairs, reinforcement materials and multiple shielding layers inside one flexible PVC jacket.
Fine 0.08 mm copper strands provide flexibility, conductivity and long-term dynamic performance.
Main power cores and protective earth conductor provide power transmission for servo motor systems.
Dedicated twisted pairs support encoder and feedback signal transmission inside the same cable.
Nylon reinforcement improves flexibility, bending resistance and internal structural stability.
Cotton cord fills internal gaps and helps increase tensile resistance during repeated movement.
Non-woven wrapping keeps the cable core compact and reduces friction between internal components.
The gray PVC compound provides flexibility, flame resistance, abrasion resistance and industrial protection.
Dedicated and overall shielding layers help protect sensitive feedback signals in servo motor and automated control systems.
Aluminum foil provides continuous shielding coverage around selected twisted-pair feedback conductors.
The flexible braided metal mesh provides shielding, mechanical stability and repeated bending performance.
Separate drain or ground conductors support convenient shield termination during cable installation.
The following information summarizes the standard material, construction and operating characteristics.
Use your actual product photographs in the positions below. No rendered machinery or fictional industrial scenes are required.

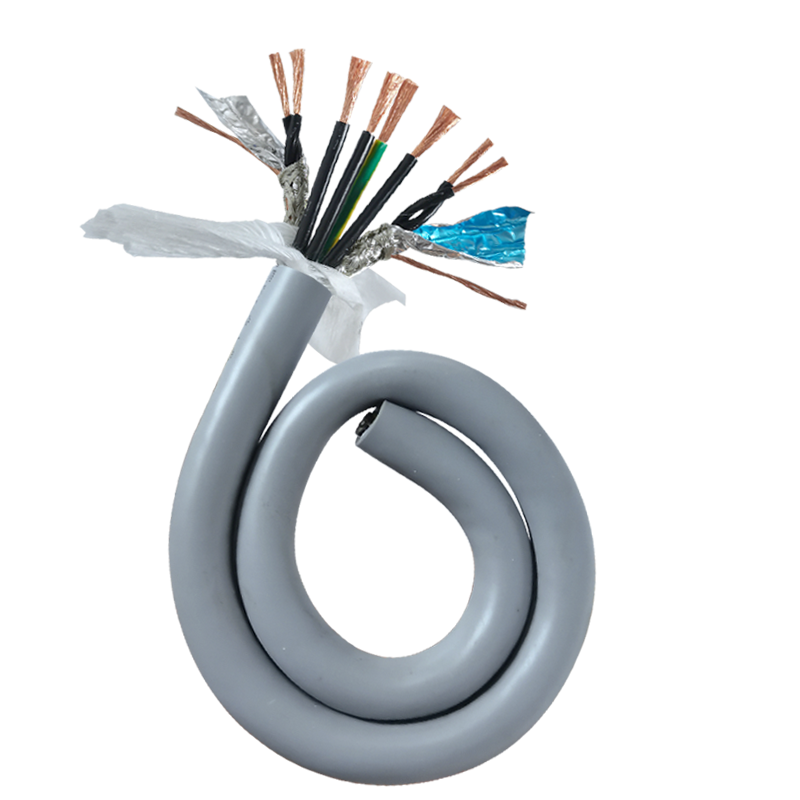

Actual cable photo showing the smooth flexible jacket and compact bending performance.
Real conductor detail showing flexible copper strands, twisted pairs and internal cable materials.
Standard configurations based on the supplied product data are listed below.
| Cable Configuration | Weight / 100m | Outer Diameter | Conductor Structure | Core Identification |
|---|---|---|---|---|
| 4 × 0.75 + 2 × 2 × 0.30 mm² | 20.2 kg | 10.5 mm | 150/0.08AS + 60/0.08AS | Black 1–Black 3, Yellow/Green |
| 4 × 1.50 + 2 × 2 × 0.75 mm² | 31.0 kg | 12.8 mm | 300/0.08AS + 150/0.08AS | Black 1–Black 3, Yellow/Green |
| 4 × 2.50 + 2 × 2 × 0.75 mm² | 42.8 kg | 14.6 mm | 500/0.08AS + 150/0.08AS | Black 1–Black 3, Yellow/Green |
Suitable for industrial equipment requiring servo power and feedback signals inside a single high-flex cable.
Combined power and feedback connections between servo drives, motors and control equipment.
Dynamic power and feedback connections in robotic arms and automated handling systems.
Moving cable installations in machining centers and automated production equipment.
Continuous reciprocating movement inside industrial cable carriers and drag chains.
ROLAN CABLE supports customized integrated servo motor power and feedback cables for automation equipment manufacturers, distributors and industrial projects.
Send us the motor power requirement, feedback signal configuration, conductor size, bending radius, travel distance and operating environment.
Contact Our Cable Team →From model selection to customized production, our cable team supports industrial customers throughout the product development and purchasing process.
Fine-stranded conductors and internal reinforcement are designed for repeated drag chain movement.
Cable materials and conductor structures are selected according to the required product specification.
Conductor size, core configuration, shielding, printing and packaging can be customized.
Suitable for equipment manufacturers, system integrators, distributors and industrial projects.
Providing the following project information helps us recommend a more suitable cable configuration.
Provide the power conductor size, feedback pair quantity, voltage and required conductor configuration.
Provide the bending radius, travel distance, movement speed, acceleration and drag chain dimensions.
Provide the working temperature, oil exposure, installation environment and required cable length.
Contact ROLAN CABLE for model selection, technical specifications, real product samples, customized manufacturing and wholesale quotations.
