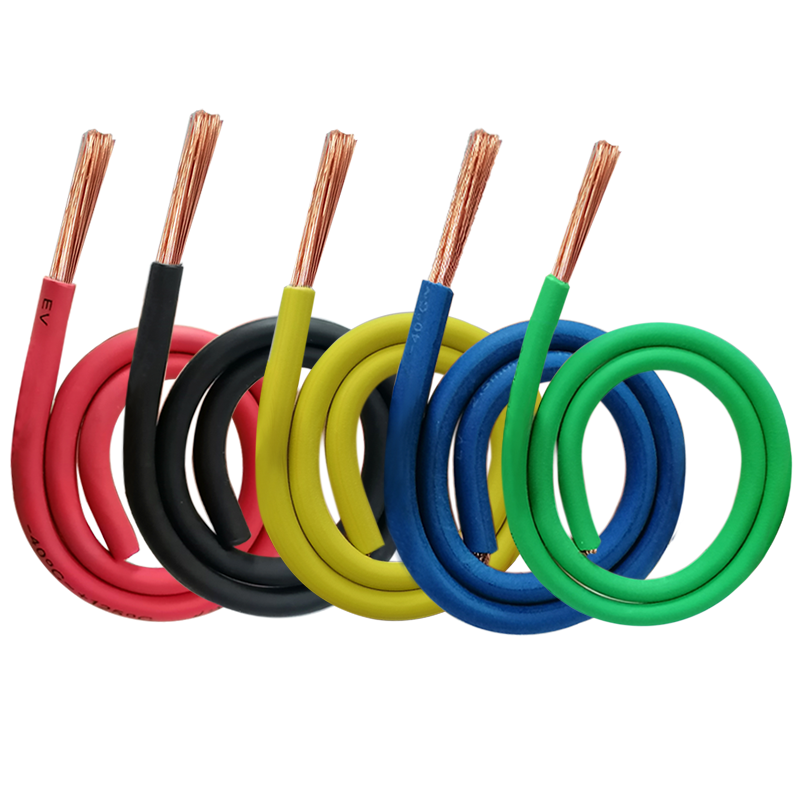

EV is a flexible 1500V single-core high-voltage cable manufactured with a fine-stranded oxygen-free copper conductor and cross-linked XLPE insulation. It is designed for new energy equipment, electrical systems, industrial machinery and fixed internal wiring applications.
A compact single-core construction combines reliable copper conductivity with durable XLPE electrical insulation.
Fine-stranded oxygen-free copper provides stable conductivity, flexibility and reliable electrical transmission.
Designed for high-voltage electrical connections in new energy, automation and industrial equipment.
Suitable for fixed installations operating from approximately −40°C to +125°C.
XLPE insulation provides flame-retardant, oil-resistant and heat-resistant performance.

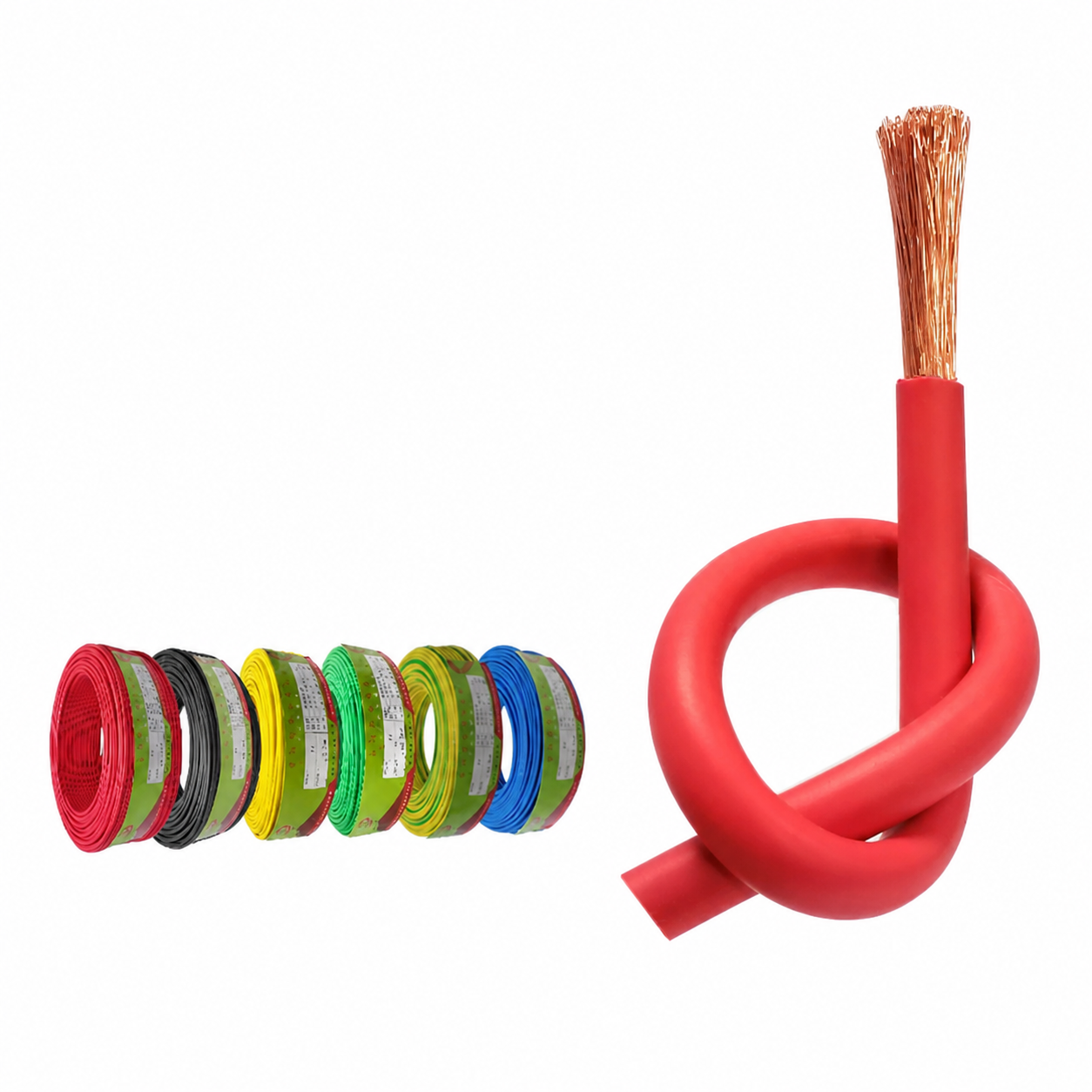

Real product photographs show the flexible conductor, standard insulation colors and finished cable coils.

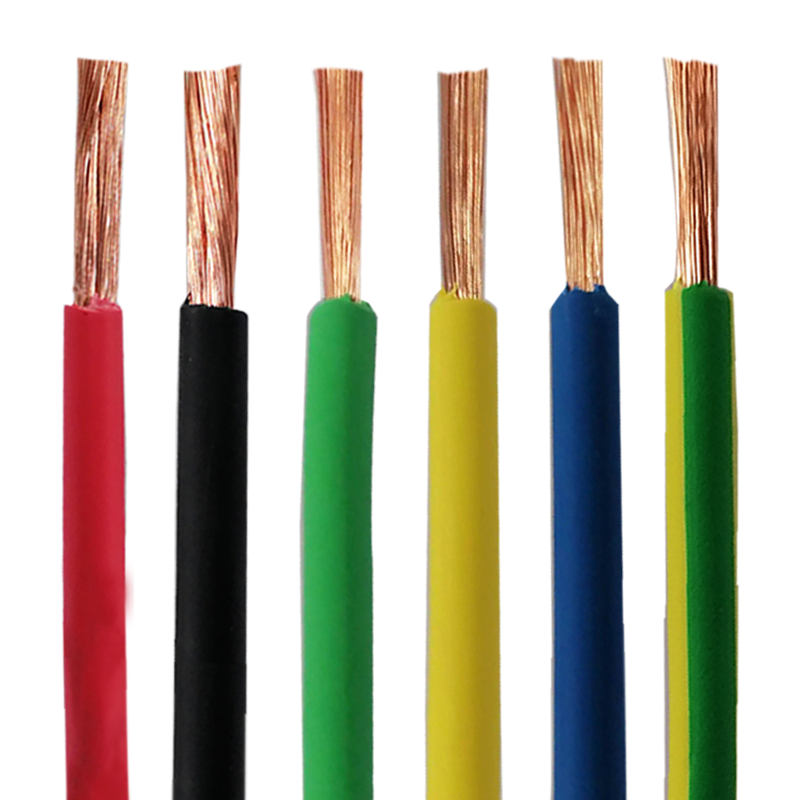

Available in red, black, blue, yellow, green and yellow-green for wiring identification.

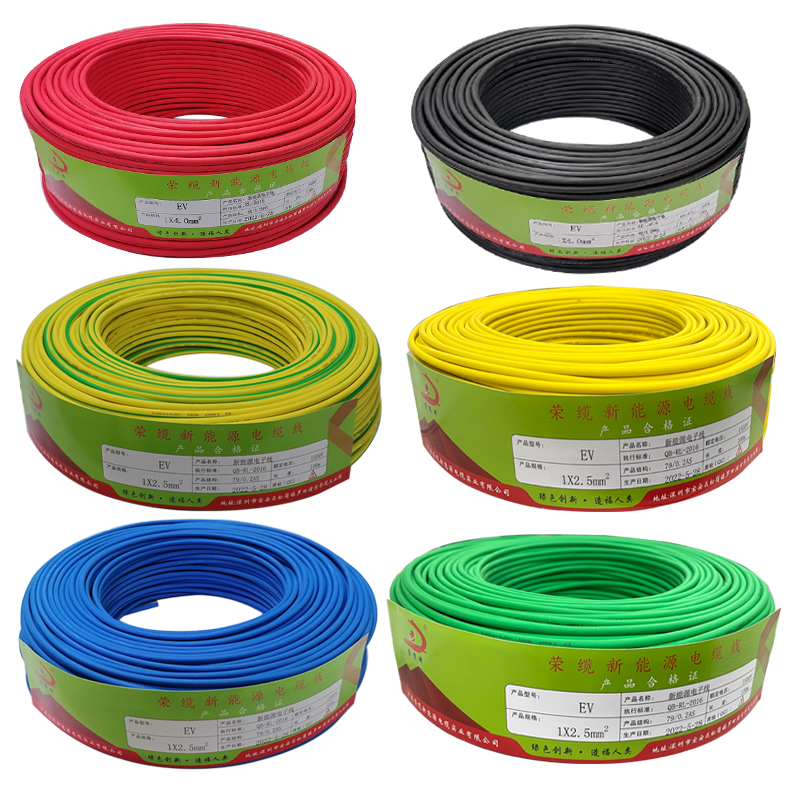

Standard coil packaging is suitable for storage, distribution and production-line use.
Multiple conductor sizes are available for control wiring and higher-current electrical connections.

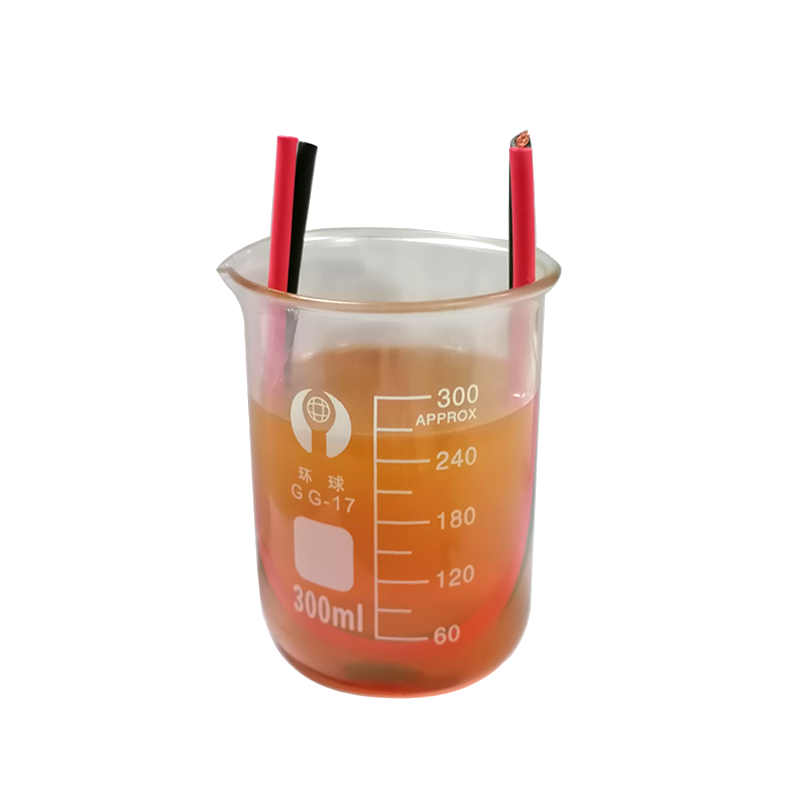

Product samples can be tested for compatibility with common industrial oil environments.
A simple two-layer construction without shielding, inner sheath or outer sheath.

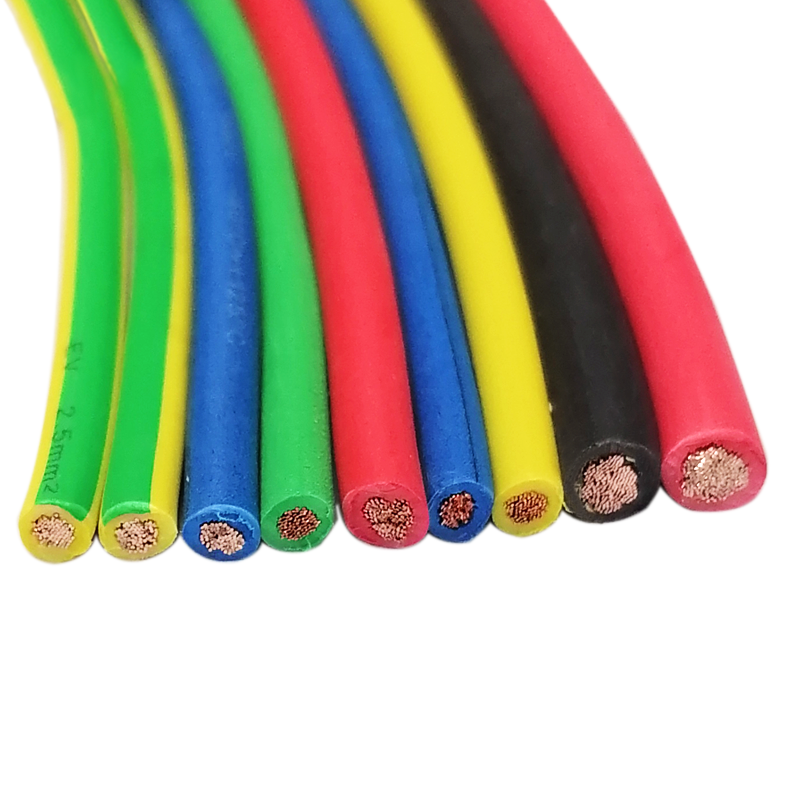

Flexible fine-stranded copper supports stable conductivity and convenient fixed-equipment wiring.
Used for conductor sizes from 0.5 mm² to 2.5 mm² according to the supplied specification table.
Used for conductor sizes from 4 mm² to 16 mm² according to the supplied specification table.
XLPE insulation provides electrical protection, high-temperature resistance and flame-retardant performance.
The EV cable has no metal braid, aluminum foil, inner sheath or additional outer sheath.
Red, black, blue, yellow, green and yellow-green options simplify circuit and wiring identification.
Finished EV wire coils are available in standard colors and customized packaging lengths.
Available from 0.5 mm² to 16 mm² with different conductor structures and overall diameters.
| Model | Number of Cores | Conductor Size | Overall Diameter | Conductor Structure | Available Colors |
|---|---|---|---|---|---|
| EV | 1 Core | 0.5 mm² | 2.2 mm | 16 / 0.20AS | Red / Black / Blue / Yellow / Green / Yellow-Green |
| EV | 1 Core | 0.75 mm² | 2.5 mm | 24 / 0.20AS | Red / Black / Blue / Yellow / Green / Yellow-Green |
| EV | 1 Core | 1.0 mm² | 2.8 mm | 32 / 0.20AS | Red / Black / Blue / Yellow / Green / Yellow-Green |
| EV | 1 Core | 1.5 mm² | 3.1 mm | 48 / 0.20AS | Red / Black / Blue / Yellow / Green / Yellow-Green |
| EV | 1 Core | 2.5 mm² | 3.6 mm | 79 / 0.20AS | Red / Black / Blue / Yellow / Green / Yellow-Green |
| EV | 1 Core | 4 mm² | 4.6 mm | 80 / 0.25AS | Red / Black / Blue / Yellow / Green / Yellow-Green |
| EV | 1 Core | 6 mm² | 5.6 mm | 120 / 0.25AS | Red / Black / Blue / Yellow / Green / Yellow-Green |
| EV | 1 Core | 10 mm² | 6.5 mm | 200 / 0.25AS | Red / Black / Blue / Yellow / Green / Yellow-Green |
| EV | 1 Core | 16 mm² | 8.0 mm | 320 / 0.25AS | Red / Black / Blue / Yellow / Green / Yellow-Green |
Suitable for fixed internal wiring where high-temperature, flame-retardant and oil-resistant performance is required.
Internal electrical connections in new energy equipment, power systems and related electrical components.
Fixed single-core wiring in compatible electric vehicle electrical and auxiliary systems.
Internal wiring for charging equipment, distribution units and control assemblies.
Fixed internal wiring for automation equipment, controllers and industrial electrical cabinets.
Electrical connections inside machinery, CNC machine tools and production equipment.
Internal wiring in electrical appliances and heating equipment requiring heat-resistant insulation.
ROLAN CABLE supports customized EV single-core cables for new energy equipment manufacturers, electrical companies, industrial projects and distributors.
Send us your voltage, conductor size, current, operating temperature, required color and installation environment.
