YFFB+2G is a reinforced flat traveling cable designed for overhead cranes, gantry cranes, hoists, lifting equipment, elevators and other mobile industrial systems. It combines fine-stranded oxygen-free copper conductors, anti-tensile nylon yarn, two steel wire ropes and a flexible special PVC outer jacket.
The electrical cores and two steel wire ropes are integrated into one flat cable construction for repeated traveling and suspension movement.
Two steel wire ropes help carry tensile loads and reduce pulling stress on the electrical conductors during traveling operation.
Designed for repeated bending and traveling movement under suitable testing, installation and operating conditions.
Fine-stranded oxygen-free copper conductors provide stable conductivity, flexibility and resistance to conductor fatigue.
Tensile-resistant nylon fibers provide additional mechanical support and help distribute pulling forces.
The special elastic PVC compound provides flexibility, abrasion resistance, oil resistance and weather protection.
The reinforced flat structure provides good resistance to bending, aging, moisture and industrial operating conditions.

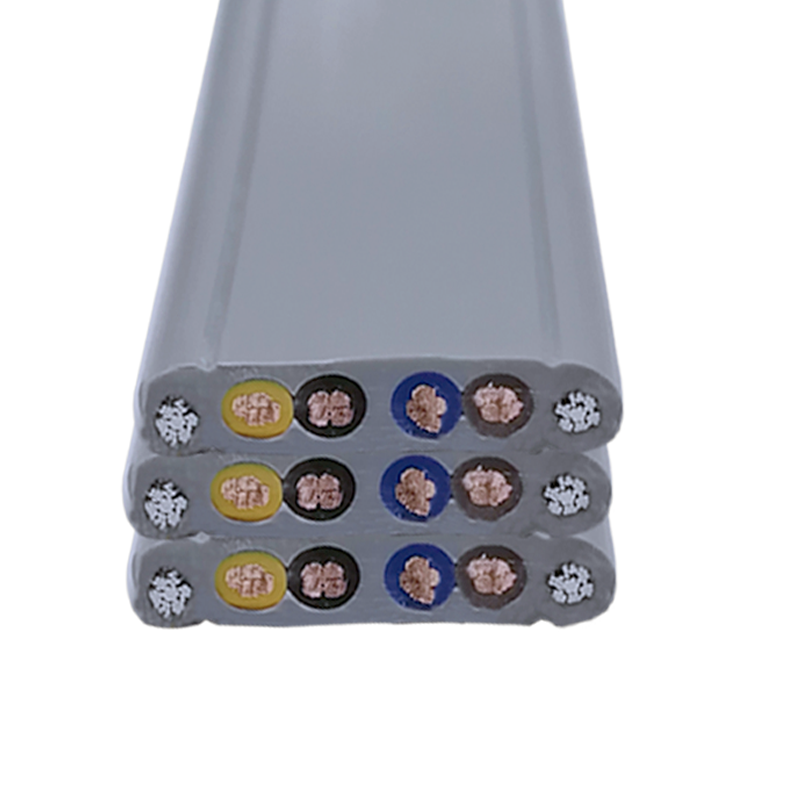

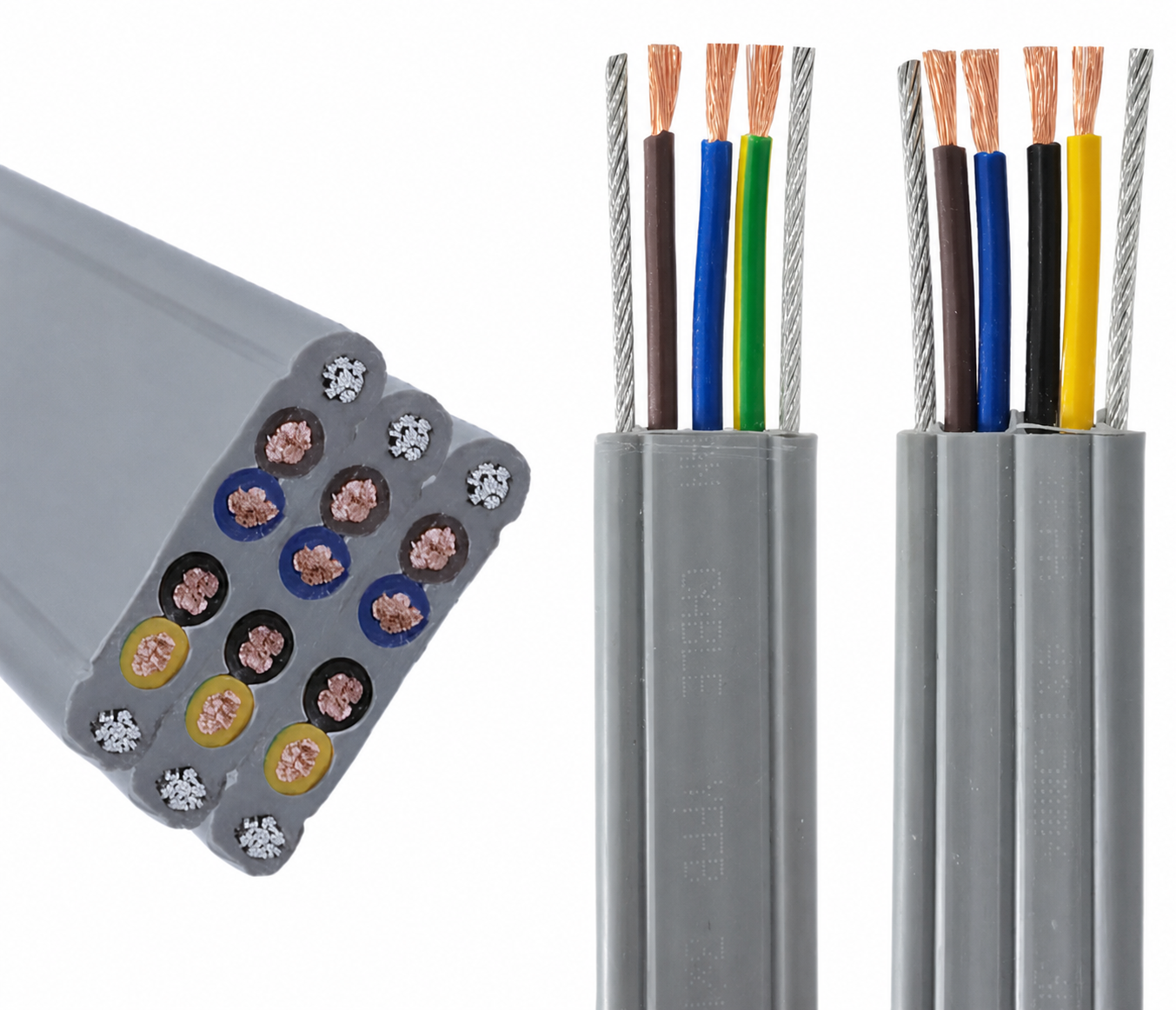

Real product photographs show the flexible gray cable body, copper conductor cores and steel wire support ropes.
Fine copper conductors, tensile nylon yarn and two steel wire ropes provide electrical transmission and mechanical support.

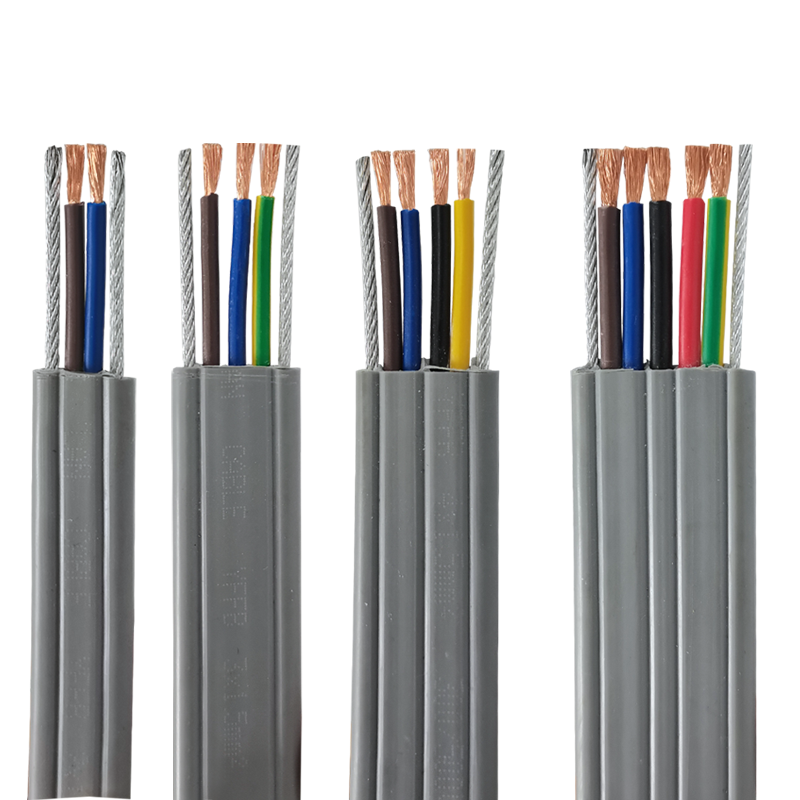

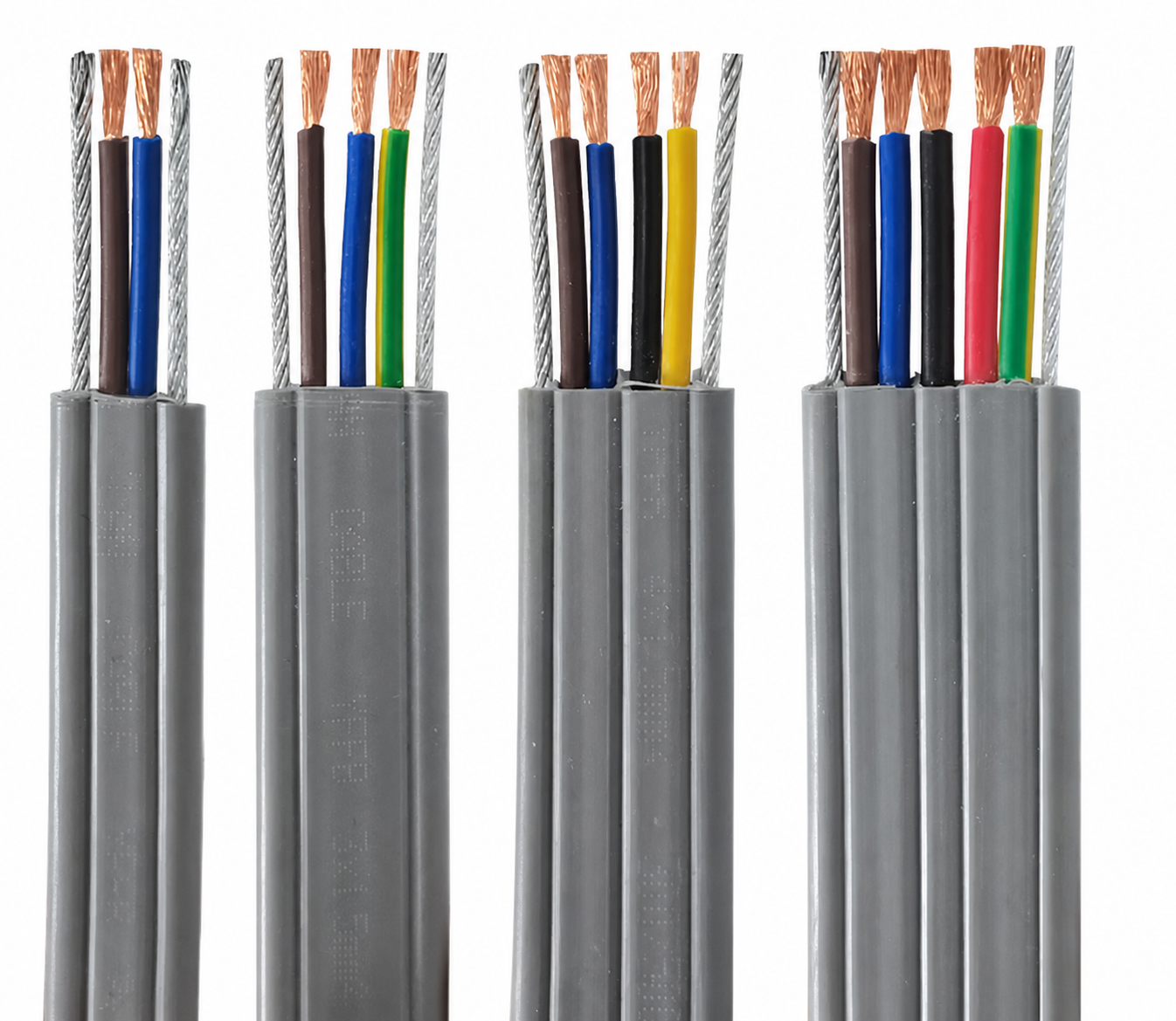

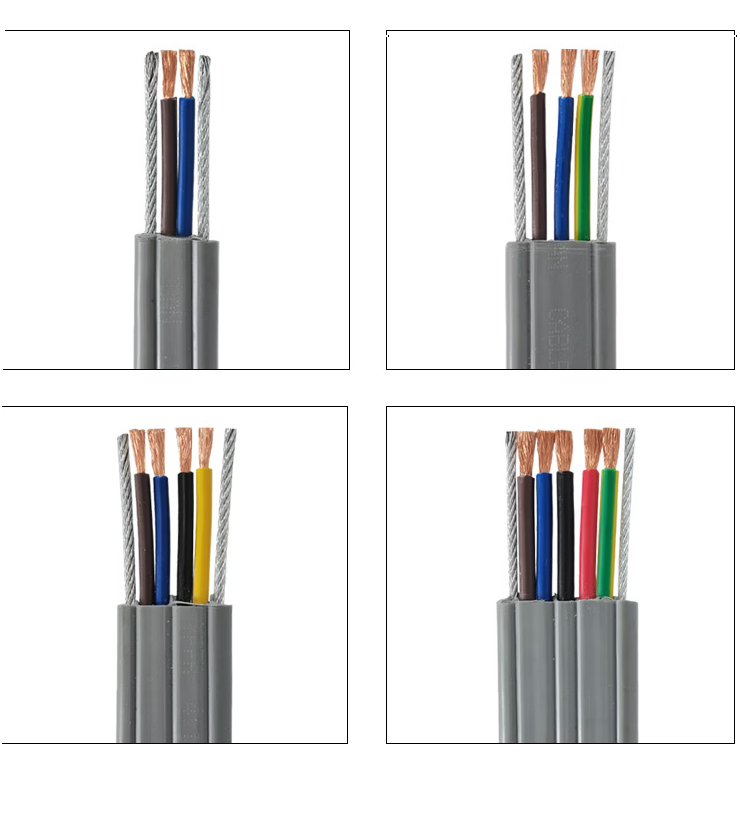

Standard options include 2 to 5 cores, high-core-count grouped constructions and conductor sizes from 0.75mm² to 6.0mm².

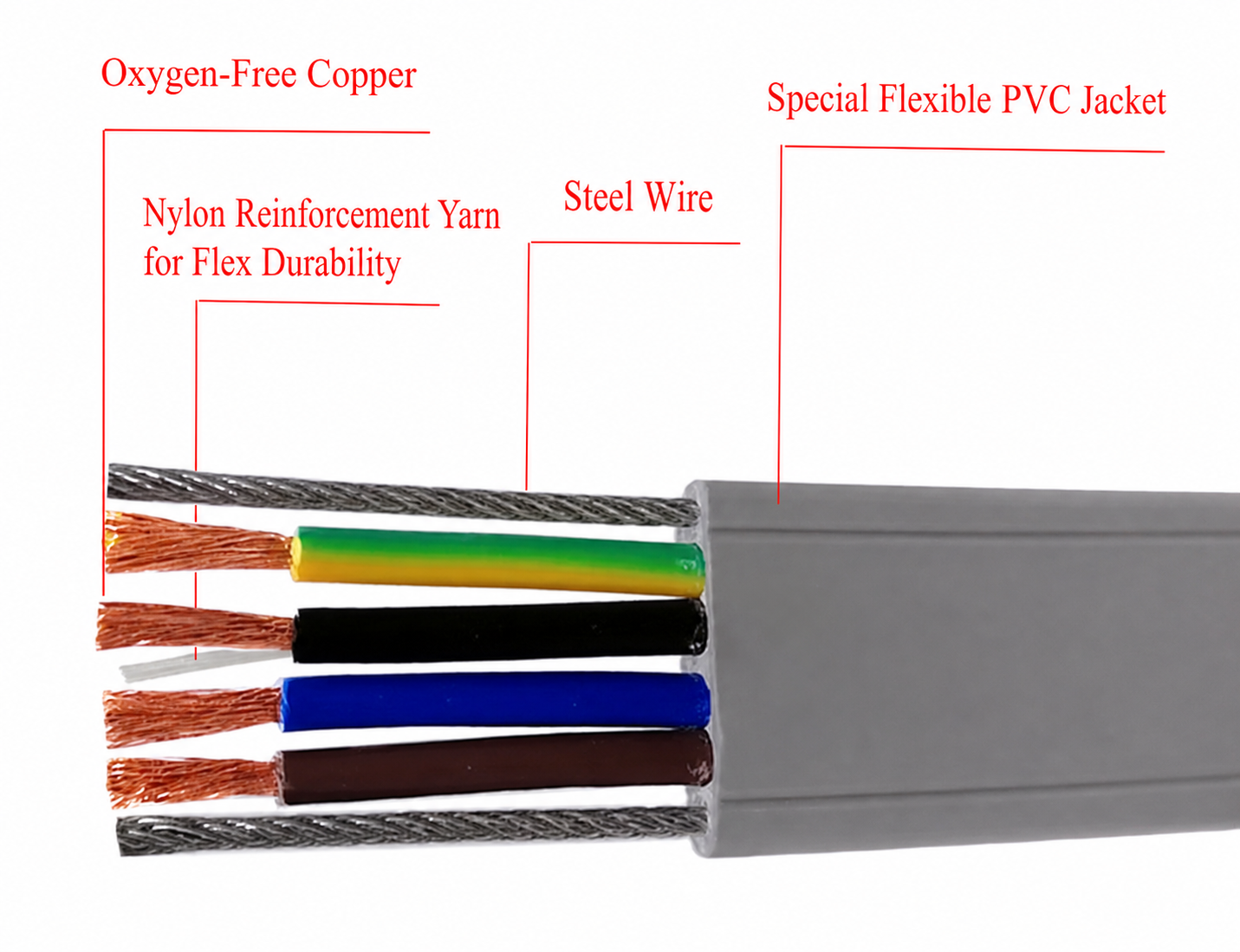

A multi-layer construction designed for conductivity, flexibility, tensile performance and repeated traveling movement.
Fine-stranded bare copper conductors provide good conductivity and flexibility during repeated cable movement.
Each conductor uses flexible colored insulation for electrical protection and convenient core identification.
Nylon reinforcement helps reduce conductor stress and improves mechanical durability during repeated bending.
Steel wire ropes positioned on both sides of the cable provide tensile support for suspension and traveling systems.
The electrical cores and support wires are arranged in a stable flat profile to reduce cable twisting.
The gray PVC compound provides flexibility, wear resistance, oil resistance and environmental protection.
The flexible copper conductors, nylon fibers and dual steel wire structure provide reliable performance for long-distance moving equipment.

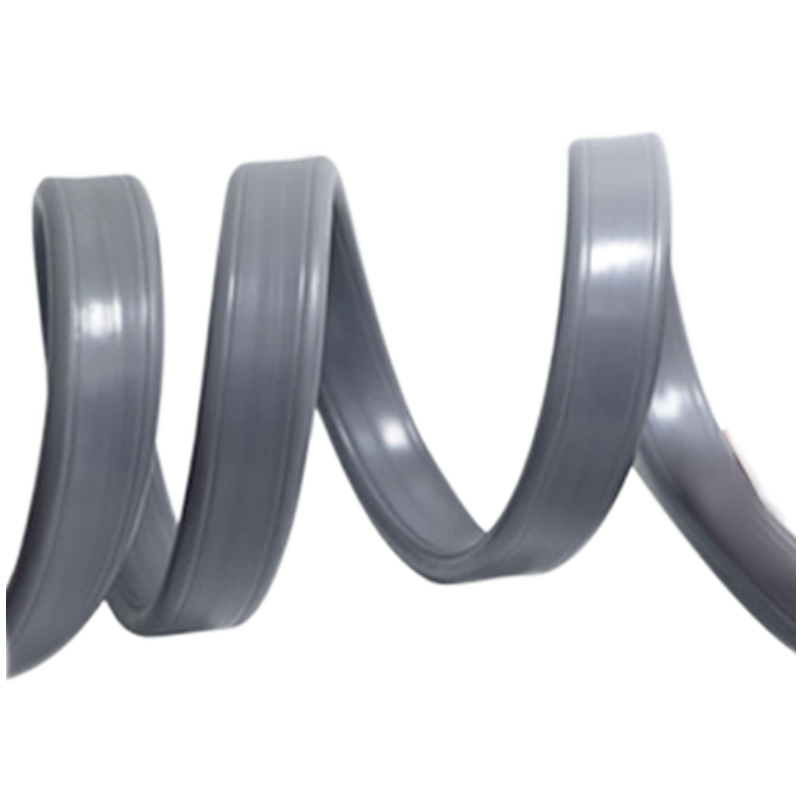

The flexible construction is designed for repeated bending under suitable cable routing and operating conditions.
Multiple conductor sizes and core counts are available for cranes, hoists and large traveling equipment.
Standard dimensions and conductor structures based on the supplied YFFB+2G specification table.
| Model | Specification | Weight / 100m | Thickness | Finished Width | Conductor Structure | Core Color / Arrangement |
|---|---|---|---|---|---|---|
| 0.75mm² Grouped Multi-Core Configurations | ||||||
| YFFB+2G | 24 × 0.75mm² | 61.43kg | 9.1mm | 38.0mm | 67 / 0.12BC | Grouped Plum-Blossom Arrangement |
| YFFB+2G | 30 × 0.75mm² | 72.21kg | 9.1mm | 44.7mm | 67 / 0.12BC | Grouped Plum-Blossom Arrangement |
| YFFB+2G | 36 × 0.75mm² | 83.01kg | 9.1mm | 51.4mm | 67 / 0.12BC | Grouped Plum-Blossom Arrangement |
| 1.5mm² Standard Configurations | ||||||
| YFFB+2G | 2 × 1.5mm² | 16.01kg | 4.9mm | 14.4mm | 133 / 0.12BC | Blue / Brown |
| YFFB+2G | 3 × 1.5mm² | 19.27kg | 4.9mm | 17.4mm | 133 / 0.12BC | Blue / Brown / Yellow-Green |
| YFFB+2G | 4 × 1.5mm² | 22.95kg | 4.9mm | 21.0mm | 133 / 0.12BC | Blue / Brown / Black / Yellow-Green |
| YFFB+2G | 5 × 1.5mm² | 26.77kg | 4.9mm | 24.8mm | 133 / 0.12BC | Red / Black / Brown / Blue / Yellow-Green |
| 2.5mm² Standard Configurations | ||||||
| YFFB+2G | 2 × 2.5mm² | 20.93kg | 5.6mm | 16.8mm | 222 / 0.12BC | Blue / Brown |
| YFFB+2G | 3 × 2.5mm² | 26.54kg | 5.6mm | 21.4mm | 222 / 0.12BC | Blue / Brown / Yellow-Green |
| YFFB+2G | 4 × 2.5mm² | 31.41kg | 5.6mm | 25.1mm | 222 / 0.12BC | Blue / Brown / Black / Yellow-Green |
| YFFB+2G | 5 × 2.5mm² | 37.10kg | 5.6mm | 29.8mm | 222 / 0.12BC | Red / Black / Brown / Blue / Yellow-Green |
| 4.0mm² Standard Configurations | ||||||
| YFFB+2G | 2 × 4.0mm² | 26.94kg | 6.6mm | 18.2mm | 355 / 0.12BC | Blue / Brown |
| YFFB+2G | 3 × 4.0mm² | 34.90kg | 6.6mm | 23.4mm | 355 / 0.12BC | Blue / Brown / Yellow-Green |
| YFFB+2G | 4 × 4.0mm² | 42.01kg | 6.6mm | 27.7mm | 355 / 0.12BC | Blue / Brown / Black / Yellow-Green |
| YFFB+2G | 5 × 4.0mm² | 50.07kg | 6.6mm | 33.0mm | 355 / 0.12BC | Red / Black / Brown / Blue / Yellow-Green |
| 6.0mm² Standard Configuration | ||||||
| YFFB+2G | 3 × 6.0mm² | 47.60kg | 8.0mm | 27.8mm | 532 / 0.12BC | Blue / Brown / Yellow-Green |
Suitable for systems requiring flexible electrical transmission and additional mechanical tensile support.
Flexible power and control connection for overhead traveling crane systems.
Suitable for gantry crane cable suspension and long-distance traveling movement.
Reinforced flat cable for hoists and vertical lifting machinery.
Flexible cable connections for industrial turnover and reciprocating equipment.
Suitable for lifting platforms and compatible construction machinery.
Used in compatible elevator and vertical traveling connection systems.
Reinforced traveling cable for compatible port cranes and material handling systems.
Power and control connections for large mobile industrial lifting machinery.
ROLAN CABLE supports customized YFFB+2G cables for crane manufacturers, lifting equipment suppliers, industrial projects and cable distributors.
Send us the conductor size, number of cores, travel distance, lifting height, movement speed, bending radius, tensile load and installation environment.
