YFFB is a high-flexible flat traveling cable designed for overhead cranes, gantry cranes, retractable doors, hoists, elevators and other large moving equipment. It uses fine-stranded oxygen-free copper conductors and a special flexible PVC compound for reliable performance during repeated bending and traveling movement.

300/500V and 450/750V options
Up to 15 million bending cycles
Oxygen-free copper conductors
Special flexible PVC compound
2 to 66 cores available
0.75mm² to 70mm² range

Request a Quote → View Specifications

15 Million Bending Cycles

15M

Bending Life Up to 15 million bending cycles

PVC

Flexible Jacket Special environmentally friendly compound

−30~105°C

Temperature Range For demanding moving equipment

2–66

Core Options Standard and multi-core configurations

Product Advantages

Durable Flat Cable for Repeated Traveling Movement

The flexible flat construction supports repeated bending, reciprocating movement and organized cable installation in cranes and large machinery.

15 Million Bending Cycles

Designed for frequent traveling and bending in compatible drag chains, cranes, hoists and moving industrial equipment.

Fine-Stranded Copper

Oxygen-free fine copper strands provide stable conductivity, flexibility and resistance to conductor fatigue.

Flexible PVC Compound

The special PVC material provides flexibility, abrasion resistance and durability during repeated movement.

Oil and Chemical Resistance

Suitable for compatible environments involving oil, acids, alkalis and industrial contaminants.

Cold and Weather Resistance

Designed for compatible operating environments from approximately −30°C to +105°C.

Wide Specification Range

Available from small multi-core control cables to large-section power cable configurations.

Real Product Photos

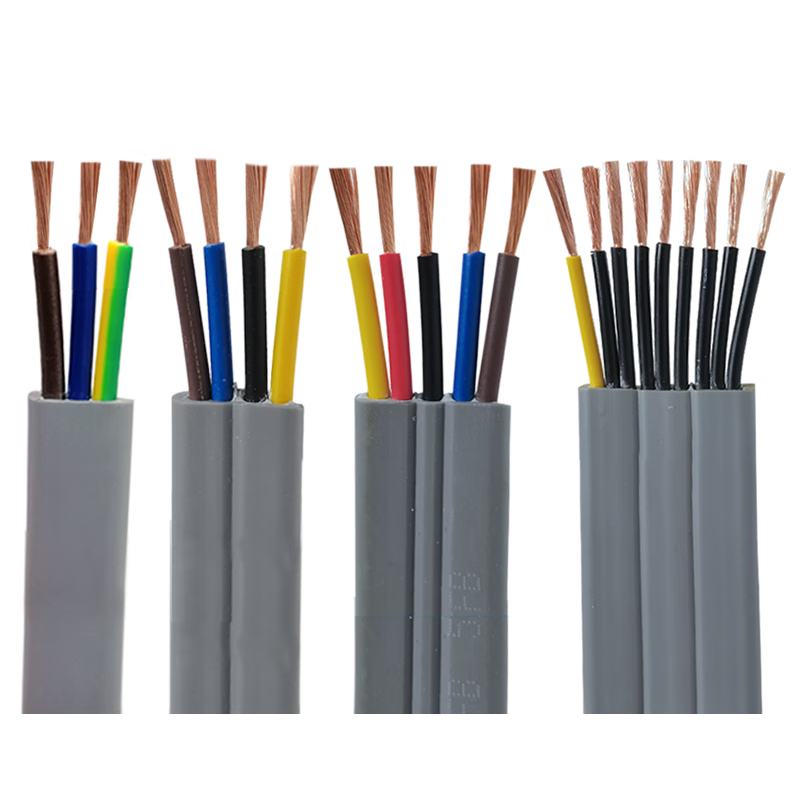

Actual YFFB Flat Traveling Cable Appearance

Real product images show the flexible gray PVC cable body, multiple core arrangements and fine-stranded copper conductors.

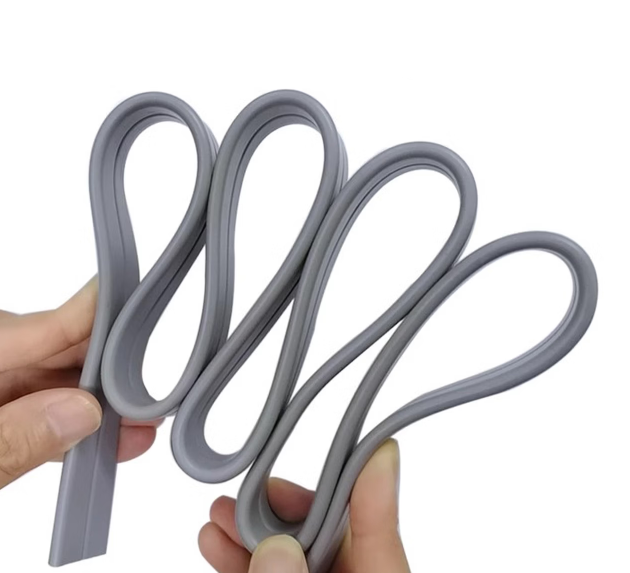

Flexible and Bend-Resistant

The soft flat cable body supports repeated bending, reversing and traveling movement in compatible machinery.

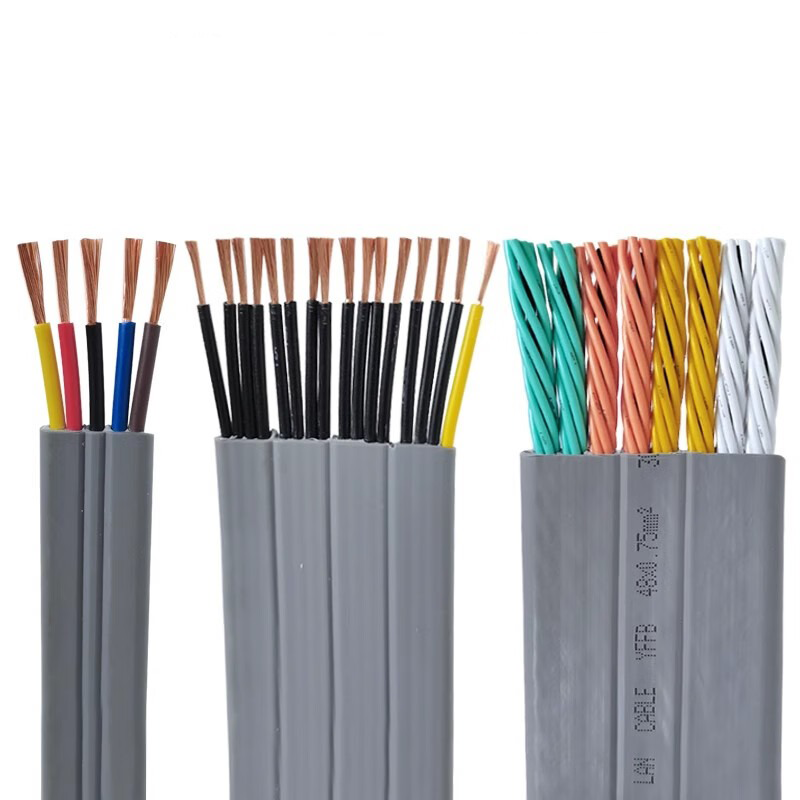

Multiple Core Arrangements

Standard options include in-line and grouped multi-core constructions for power, control and equipment connections.

Cable Construction

YFFB High-Flex Flat Cable Structure

A flexible parallel construction designed for stable movement and easier cable arrangement in traveling equipment.

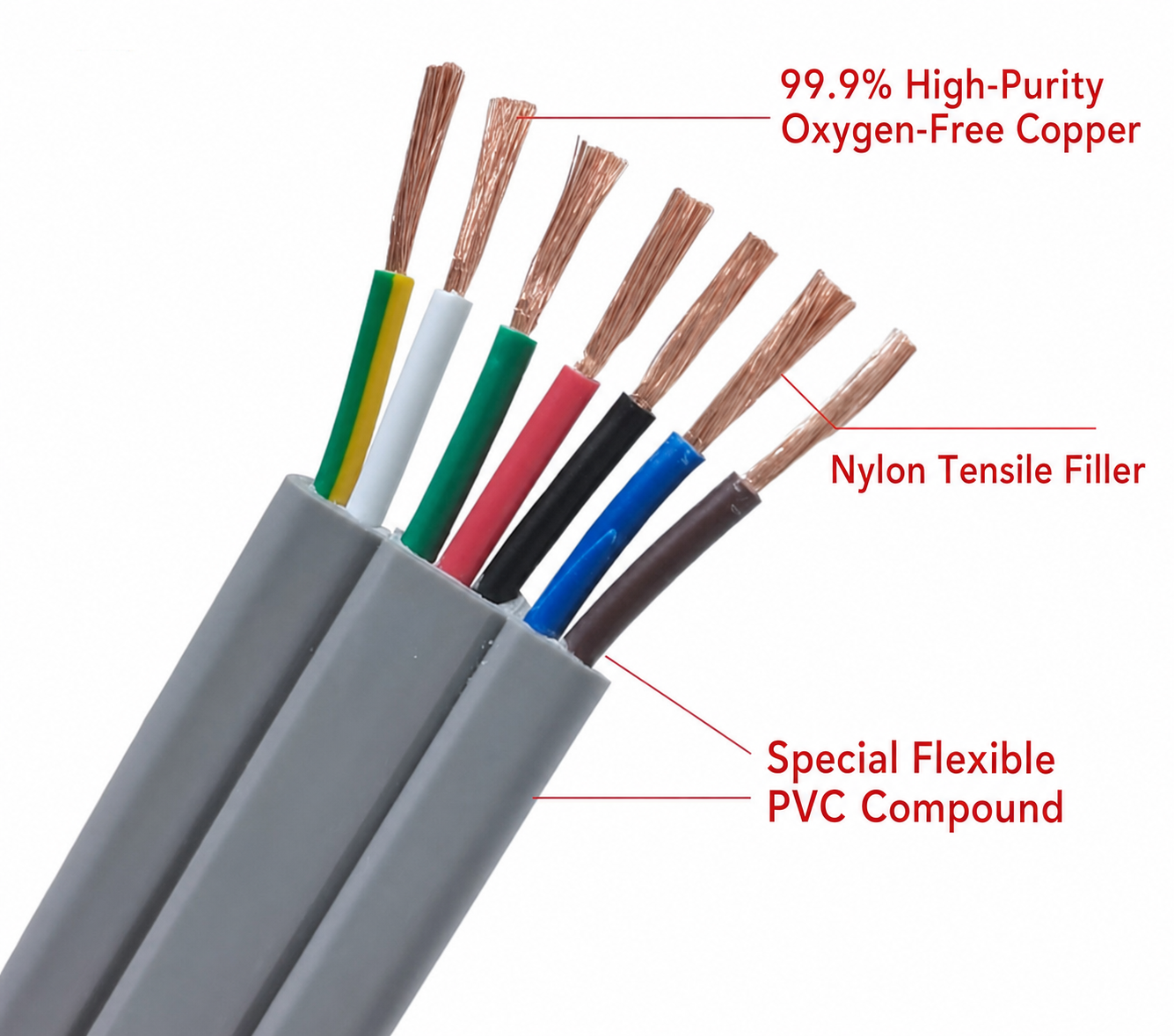

Actual YFFB Cable Construction Fine-stranded oxygen-free copper, flexible insulated cores and a special gray PVC flat outer jacket.

Oxygen-Free Copper Conductor

Fine-stranded bare copper conductors provide good conductivity, flexibility and resistance to repeated bending.

Flexible Core Insulation

Each conductor uses flexible colored insulation to provide electrical protection and core identification.

Parallel Core Arrangement

The insulated conductors are arranged in a flat parallel structure to reduce twisting during traveling movement.

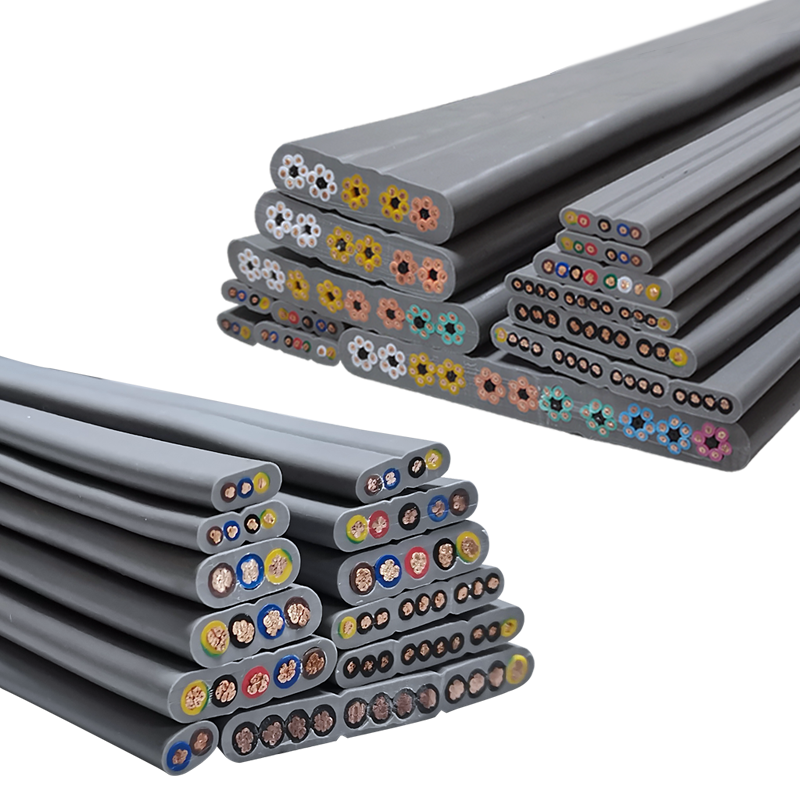

Grouped Multi-Core Structure

High-core-count versions can use grouped conductor arrangements to control cable width and improve structural stability.

Special Flexible PVC Jacket

The gray PVC compound provides flexibility, abrasion resistance, oil resistance and weather protection.

Product Performance

Built for Continuous Movement and Industrial Use

The flexible copper conductors and special PVC compound provide long service life in demanding moving equipment applications.

2 to 66 Core Options

The extensive range supports simple power connections, multi-core control systems and large industrial equipment.

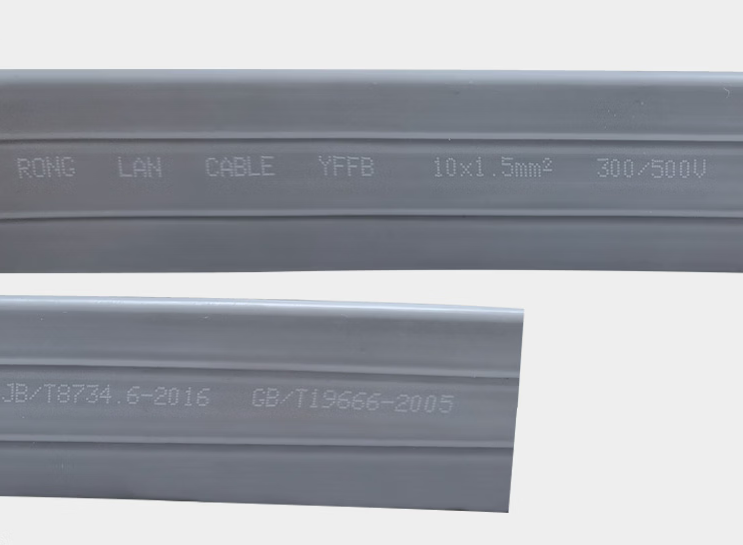

Clear Cable Identification

The outer jacket can be printed with the manufacturer name, model, specification, voltage rating and production standard.

Technical Overview

YFFB Flat Traveling Cable Information

Product Name High-Flex Flat Traveling Cable

Product Model YFFB

Rated Voltage 300/500V or 450/750V

Temperature Range −30°C to +105°C

Bending Life Up to 15 million cycles

Conductor Material Fine-stranded oxygen-free bare copper

Core Insulation Flexible colored insulation

Outer Jacket Special environmentally friendly PVC compound

Standard Jacket Color Gray

Cable Shape Flat in-line or grouped flat construction

Core Range 2 to 66 cores

Conductor Range 0.75mm² to 70mm²

Mechanical Performance Flexible, tensile-resistant and wear-resistant

Environmental Performance Oil, water, weather and aging resistance

Main Applications Cranes, hoists, elevators and traveling systems

Product Specifications

YFFB Standard Cable Configurations

Standard conductor structures, dimensions and weights based on the supplied YFFB product data.

Specification	Weight / 100m	Thickness	Finished Width	Conductor Structure	Construction
0.75mm² Standard Configurations
2 × 0.75mm²	5.03kg	4.2mm	6.4mm	67 / 0.12BC	Flat In-Line
3 × 0.75mm²	7.54kg	4.2mm	9.6mm	67 / 0.12BC	Flat In-Line
4 × 0.75mm²	9.94kg	4.2mm	12.6mm	67 / 0.12BC	Flat In-Line
5 × 0.75mm²	12.33kg	4.2mm	15.6mm	67 / 0.12BC	Flat In-Line
6 × 0.75mm²	13.75kg	4.2mm	17.0mm	67 / 0.12BC	Flat In-Line
7 × 0.75mm²	16.14kg	4.2mm	20.0mm	67 / 0.12BC	Flat In-Line
8 × 0.75mm²	17.56kg	4.2mm	21.4mm	67 / 0.12BC	Flat In-Line
9 × 0.75mm²	19.95kg	4.2mm	24.4mm	67 / 0.12BC	Flat In-Line
10 × 0.75mm²	21.85kg	4.2mm	26.6mm	67 / 0.12BC	Flat In-Line
12 × 0.75mm²	25.67kg	4.2mm	31.0mm	67 / 0.12BC	Flat In-Line
14 × 0.75mm²	29.50kg	4.2mm	37.0mm	67 / 0.12BC	Flat In-Line
16 × 0.75mm²	33.77kg	4.2mm	40.6mm	67 / 0.12BC	Flat In-Line
18 × 0.75mm²	37.58kg	4.2mm	45.0mm	67 / 0.12BC	Flat In-Line
20 × 0.75mm²	41.39kg	4.2mm	49.4mm	67 / 0.12BC	Flat In-Line
24 × 0.75mm²	55.80kg	9.1mm	32.0mm	67 / 0.12BC	Grouped Flat
30 × 0.75mm²	68.16kg	9.1mm	38.8mm	67 / 0.12BC	Grouped Flat
36 × 0.75mm²	80.53kg	9.1mm	45.6mm	67 / 0.12BC	Grouped Flat
40 × 0.75mm²	91.76kg	9.1mm	52.4mm	67 / 0.12BC	Grouped Flat
42 × 0.75mm²	92.89kg	9.1mm	52.4mm	67 / 0.12BC	Grouped Flat
48 × 0.75mm²	105.26kg	9.1mm	59.2mm	67 / 0.12BC	Grouped Flat
54 × 0.75mm²	117.62kg	9.1mm	66.0mm	67 / 0.12BC	Grouped Flat
60 × 0.75mm²	129.99kg	9.1mm	72.8mm	67 / 0.12BC	Grouped Flat
66 × 0.75mm²	142.36kg	9.1mm	79.6mm	67 / 0.12BC	Grouped Flat
1.0mm² Standard Configurations
2 × 1.0mm²	6.07kg	4.5mm	7.0mm	89 / 0.12BC	Flat In-Line
3 × 1.0mm²	9.11kg	4.5mm	10.5mm	89 / 0.12BC	Flat In-Line
4 × 1.0mm²	12.01kg	4.5mm	13.8mm	89 / 0.12BC	Flat In-Line
5 × 1.0mm²	14.92kg	4.5mm	17.1mm	89 / 0.12BC	Flat In-Line
6 × 1.0mm²	16.78kg	4.5mm	18.8mm	89 / 0.12BC	Flat In-Line
7 × 1.0mm²	19.69kg	4.5mm	22.1mm	89 / 0.12BC	Flat In-Line
8 × 1.0mm²	21.55kg	4.5mm	23.8mm	89 / 0.12BC	Flat In-Line
9 × 1.0mm²	24.46kg	4.5mm	27.1mm	89 / 0.12BC	Flat In-Line
10 × 1.0mm²	26.84kg	4.5mm	29.6mm	89 / 0.12BC	Flat In-Line
12 × 1.0mm²	31.61kg	4.5mm	34.6mm	89 / 0.12BC	Flat In-Line
14 × 1.0mm²	37.00kg	4.5mm	40.0mm	89 / 0.12BC	Flat In-Line
16 × 1.0mm²	41.66kg	4.5mm	45.4mm	89 / 0.12BC	Flat In-Line
18 × 1.0mm²	46.43kg	4.5mm	50.4mm	89 / 0.12BC	Flat In-Line
20 × 1.0mm²	51.20kg	4.5mm	55.4mm	89 / 0.12BC	Flat In-Line
24 × 1.0mm²	73.17kg	10.5mm	36.2mm	89 / 0.12BC	Grouped Flat
30 × 1.0mm²	89.41kg	10.5mm	43.9mm	89 / 0.12BC	Grouped Flat
36 × 1.0mm²	105.65kg	10.5mm	51.6mm	89 / 0.12BC	Grouped Flat
40 × 1.0mm²	120.38kg	10.5mm	59.3mm	89 / 0.12BC	Grouped Flat
42 × 1.0mm²	121.89kg	10.5mm	59.3mm	89 / 0.12BC	Grouped Flat
48 × 1.0mm²	138.13kg	10.5mm	67.0mm	89 / 0.12BC	Grouped Flat
54 × 1.0mm²	154.37kg	10.5mm	74.7mm	89 / 0.12BC	Grouped Flat
60 × 1.0mm²	170.60kg	10.5mm	82.4mm	89 / 0.12BC	Grouped Flat
66 × 1.0mm²	186.84kg	10.5mm	90.1mm	89 / 0.12BC	Grouped Flat
1.5mm², 2.5mm² and 4.0mm² Configurations
2 × 1.5mm²	7.93kg	4.9mm	8.0mm	133 / 0.12BC	Flat In-Line
3 × 1.5mm²	12.61kg	4.9mm	11.3mm	133 / 0.12BC	Flat In-Line
4 × 1.5mm²	17.05kg	4.9mm	15.4mm	133 / 0.12BC	Flat In-Line
5 × 1.5mm²	21.21kg	4.9mm	19.1mm	133 / 0.12BC	Flat In-Line
6 × 1.5mm²	24.23kg	4.9mm	21.2mm	133 / 0.12BC	Flat In-Line
7 × 1.5mm²	28.39kg	4.9mm	24.9mm	133 / 0.12BC	Flat In-Line
8 × 1.5mm²	31.41kg	4.9mm	27.0mm	133 / 0.12BC	Flat In-Line
9 × 1.5mm²	35.56kg	4.9mm	30.7mm	133 / 0.12BC	Flat In-Line
10 × 1.5mm²	39.15kg	4.9mm	33.6mm	133 / 0.12BC	Flat In-Line
12 × 1.5mm²	46.33kg	4.9mm	39.4mm	133 / 0.12BC	Flat In-Line
2 × 2.5mm²	11.70kg	5.6mm	9.8mm	222 / 0.12BC	Flat In-Line
3 × 2.5mm²	17.31kg	5.6mm	14.4mm	222 / 0.12BC	Flat In-Line
4 × 2.5mm²	23.00kg	5.6mm	19.1mm	222 / 0.12BC	Flat In-Line
5 × 2.5mm²	28.69kg	5.6mm	23.8mm	222 / 0.12BC	Flat In-Line
6 × 2.5mm²	32.59kg	5.6mm	26.3mm	222 / 0.12BC	Flat In-Line
7 × 2.5mm²	38.28kg	5.6mm	31.0mm	222 / 0.12BC	Flat In-Line
8 × 2.5mm²	42.19kg	5.6mm	33.5mm	222 / 0.12BC	Flat In-Line
9 × 2.5mm²	47.88kg	5.6mm	38.2mm	222 / 0.12BC	Flat In-Line
10 × 2.5mm²	52.67kg	5.6mm	41.8mm	222 / 0.12BC	Flat In-Line
12 × 2.5mm²	62.26kg	5.6mm	49.0mm	222 / 0.12BC	Flat In-Line
2 × 4.0mm²	16.51kg	6.6mm	11.0mm	355 / 0.12BC	Flat In-Line
3 × 4.0mm²	24.47kg	6.6mm	16.2mm	355 / 0.12BC	Flat In-Line
4 × 4.0mm²	32.63kg	6.6mm	21.6mm	355 / 0.12BC	Flat In-Line
5 × 4.0mm²	40.79kg	6.6mm	27.0mm	355 / 0.12BC	Flat In-Line
6 × 4.0mm²	46.65kg	6.6mm	30.0mm	355 / 0.12BC	Flat In-Line
8 × 4.0mm²	60.67kg	6.6mm	38.4mm	355 / 0.12BC	Flat In-Line
9 × 4.0mm²	68.83kg	6.6mm	43.8mm	355 / 0.12BC	Flat In-Line
10 × 4.0mm²	75.84kg	6.6mm	48.0mm	355 / 0.12BC	Flat In-Line
12 × 4.0mm²	89.86kg	6.6mm	56.4mm	355 / 0.12BC	Flat In-Line
Large-Section Power Configurations
2 × 6mm²	23.80kg	7.8mm	13.5mm	532 / 0.12BC	Flat In-Line
3 × 6mm²	37.61kg	7.8mm	22.0mm	532 / 0.12BC	Flat In-Line
4 × 6mm² (3+1)	46.14kg	7.8mm	27.3mm	532 + 355 / 0.12BC	Flat In-Line
5 × 6mm² (3+2)	57.19kg	7.8mm	32.6mm	532 + 355 / 0.12BC	Flat In-Line
2 × 10mm²	34.00kg	9.2mm	22.0mm	532 / 0.12BC	Flat In-Line
3 × 10mm²	51.00kg	9.2mm	28.0mm	532 / 0.12BC	Flat In-Line
4 × 10mm² (3+1)	67.46kg	9.2mm	31.5mm	888 + 532 / 0.12BC	Flat In-Line
5 × 10mm² (3+2)	79.88kg	9.2mm	38.0mm	888 + 532 / 0.12BC	Flat In-Line
3 × 16mm²	78.51kg	10.8mm	29.6mm	320 / 0.25BC	Flat In-Line
4 × 16mm² (3+1)	96.00kg	10.8mm	37.1mm	320 / 0.25BC	Flat In-Line
5 × 16mm² (3+2)	113.49kg	10.8mm	44.6mm	320 / 0.25BC	Flat In-Line
4 × 25mm² (3+1)	140.86kg	12.6mm	43.3mm	510 + 320 / 0.25BC	Flat In-Line
5 × 25mm² (3+2)	166.90kg	12.6mm	52.2mm	510 + 320 / 0.25BC	Flat In-Line
4 × 35mm² (3+1)	194.16kg	14.6mm	49.7mm	715 + 510 / 0.25BC	Flat In-Line
5 × 35mm² (3+2)	232.34kg	14.6mm	60.2mm	715 + 510 / 0.25BC	Flat In-Line
4 × 50mm² (3+1)	273.82kg	17.0mm	60.0mm	1020 + 715 / 0.25BC	Flat In-Line
5 × 50mm² (3+2)	321.24kg	17.0mm	70.2mm	1020 + 715 / 0.25BC	Flat In-Line
4 × 70mm² (3+1)	362.88kg	19.4mm	65.5mm	1428 + 1020 / 0.25BC	Flat In-Line

The dimensions and weights above are based on the supplied YFFB specification sheets. Finished dimensions may vary slightly according to production tolerance, conductor structure, core arrangement, voltage rating and customized requirements.

Typical Applications

Designed for Cranes and Traveling Machinery

Suitable for equipment requiring flexible flat cables under repeated bending and reciprocating movement.

Overhead Cranes

Flexible power and control cable for bridge cranes and overhead traveling equipment.

Gantry Cranes

Suitable for gantry crane traveling systems and large material handling equipment.

Hoists

Flexible cable connection for electric hoists, lifting machinery and vertical moving equipment.

Retractable Doors

Flat flexible cable for electric retractable doors and reciprocating gate systems.

Drag Chain Systems

Suitable for compatible flat drag chains requiring repeated movement and cable organization.

Elevator Equipment

Used in compatible elevator and lifting systems requiring flexible traveling connections.

Port Machinery

Cable solutions for compatible port cranes, handling equipment and moving machinery.

Industrial Equipment

Flexible power and control connections for large mobile industrial equipment.

OEM YFFB Flat Traveling Cable Manufacturing

ROLAN CABLE supports customized YFFB cable production for crane manufacturers, lifting equipment suppliers, automation projects and global industrial cable distributors.

Custom conductor size
Custom number of cores
Custom voltage rating
Custom conductor structure
Custom cable thickness
Custom finished width
Custom core arrangement
Custom core color sequence
Custom sheath printing
Custom packaging length

Need a Custom YFFB Cable?

Send us the conductor size, number of cores, voltage rating, travel distance, bending radius, movement speed and installation environment.

Contact Our Cable Team →

Frequently Asked Questions

YFFB Flat Traveling Cable FAQ

What is YFFB cable mainly used for?

YFFB is mainly used in overhead cranes, gantry cranes, electric hoists, retractable doors, compatible drag chains, elevators and other large moving equipment.

What voltage ratings are available?

The supplied product information lists 300/500V and 450/750V options. The required voltage should be confirmed before production.

What is the bending life?

The supplied product information indicates bending performance of up to approximately 15 million cycles under suitable testing and installation conditions.

What conductor material is used?

YFFB uses fine-stranded oxygen-free bare copper conductors for stable conductivity and flexible movement.

What material is used for the outer jacket?

The outer jacket uses a special environmentally friendly flexible PVC compound designed for repeated bending and industrial environments.

What is the operating temperature range?

The supplied product information specifies an operating temperature range of approximately −30°C to +105°C.

Is YFFB a shielded cable?

The standard YFFB structure shown in the supplied product images does not include an overall metal shielding layer.

What sizes are available?

The supplied range covers approximately 2 to 66 cores and conductor sizes from 0.75mm² to 70mm².

Can YFFB cable be customized?

Yes. Conductor size, number of cores, voltage rating, conductor structure, cable thickness, width, colors, printing and packaging can be customized.

Looking for a High-Flex Flat Traveling Cable?

Contact ROLAN CABLE for YFFB cable selection, complete specifications, real product samples, customized production and wholesale quotations.

Request a Custom Quote →

Contact Us

E-mail : sales@rolancable.com

Tel/Whatsapp: +86 19120640642

Wechat

Request a Quote Get Started Today

Email*

Phone/Whatsapp*

Afghanistan +93
Australia +61
Brazil +55
Canada +1
France +33
Germany +49
Italy +39
Spain +34
Switzerland +41
United Kingdom +44
United States +1
Aland Islands +358
Albania +355
Algeria +213
American Samoa +1684
Andorra +376
Angola +244
Anguilla +1264
Antigua and Barbuda +1268
Argentina +54
Armenia +374
Aruba +297
Ascension Island +247
Austria +43
Azerbaijan +994
Bahamas +1242
Bahrain +973
Bangladesh +880
Barbados +1246
Belarus +375
Belgium +32
Belize +501
Benin +229
Bermuda +1441
Bhutan +975
Bolivia +591
Bosnia and Herzegovina +387
Botswana +267
Bouvet Island +0
British Indian Ocean Territory +246
British Virgin Islands +1284
Brunei Darussalam +673
Bulgaria +359
Burkina Faso +226
Burundi +257
Cambodia +855
Cameroon +237
Cape Verde +238
Caribbean Netherlands +599
Cayman Islands +1345
Central African Republic +236
Chad +235
Chile +56
China +86
Christmas Island +61
Cocos (Keeling) Islands +672
Colombia +57
Comoros +269
Congo +242
Cook Islands +682
Costa Rica +506
Cote D'ivoire +225
Cuba +53
Curaçao +599
Cyprus +357
Czech Republic +420
Korea,D.P.R.K +850
Congo, The Democratic Republic +243
Denmark +45
Djibouti +253
Timor Leste +670
Ecuador +593
Egypt +20
El Salvador +503
Equatorial Guinea +240
Eritrea +291
Estonia +372
Ethiopia +251
Falkland Islands (Malvinas) +500
Faeroe Islands +298
Fiji +679
Finland +358
French Guiana +594
French Polynesia +689
French Southern Territories +0
Gabon +241
Gambia +220
Georgia +995
Ghana +233
Gibraltar +350
Greece +30
Greenland +299
Grenada +1473
France, DOM-TOM Guadeloupe +0
U.S. Guam +1671
Guatemala +502
Guernsey +44
Guinea +224
Guinea-bissau +245
Guyana +592
Haiti +509
Heard Island and Mcdonald Islands +0
Honduras +504
Hong Kong, China +852
Hungary +36
Iceland +354
India +91
Indonesia +62
Iran (Islamic Republic of) +98
Iraq +964
Ireland +353
Isle of Man +44
Israel +972
Jamaica +1876
Japan +81
Jersey +44
Jordan +962
Kazakhstan +7
Kenya +254
Kiribati +686
Korea, Republic of +82
Kosovo +384
Kuwait +965
Kyrgyzstan +996
Lao People's Democratic Republic +856
Latvia +371
Lebanon +961
Lesotho +266
Liberia +231
Liechtenstein +423
Lithuania +370
Luxembourg +352
Macau, China +853
Madagascar +261
Malawi +265
Malaysia +60
Maldives +960
Mali +223
Malta +356
Marshall Islands +692
France, DOM-TOM Martinique +596
Mauritania +222
Mauritius +230
France, DOM-TOM Mayotte +269
Mexico +52
Micronesia, Federated States of +691
Moldova, Republic of +373
Monaco +377
Mongolia +976
Montenegro +382
Montserrat +1664
Morocco +212
Mozambique +258
Myanmar +95
Namibia +264
Nauru +674
Nepal +977
Netherlands +31
Netherlands Antilles +599
France, DOM-TOM New Caledonia +687
New Zealand +64
Nicaragua +505
Niger +227
Nigeria +234
Niue +683
Norfolk Island +672
North Macedonia +389
Northern Mariana Islands +1670
Norway +47
Oman +968
Pakistan +92
Palau +680
Palestine +970
Panama +507
Papua New Guinea +675
Paraguay +595
Peru +51
Philippines +63
Pitcairn +64
Poland +48
Portugal +351
Puerto Rico +1
Qatar +974
France, DOM-TOM Réunion +262
Romania +40
Russia +7
Rwanda +250
Saint Barthélemy +590
St. Helena +247
Saint Kitts and Nevis +1869
Saint Lucia +1758
Saint Martin +590
France,St.Pierre and Miquelon +508
Saint Vincent and the Grenadines +784
Samoa +685
San Marino +378
Sao Tome and Principe +239
Saudi Arabia +966
Senegal +221
Serbia +381
Seychelles +248
Sierra Leone +232
Singapore +65
Sint Maarten +599
Slovakia (Slovak Republic) +421
Slovenia +386
Vietnam +84
Solomon Islands +677
Somalia +252
South Africa +27
South Georgia and The South Sandwich Islands +0
South Sudan +211
Sri Lanka +94
Libyan Arab Jamahiriya +218
Sudan +249
Suriname +597
Svalbard and Jan Mayen Islands +0
Swaziland +268
Sweden +46
Syrian Arab Republic +963
Taiwan, China +886
Tajikistan +992
Tanzania, United Republic of +255
Thailand +66
The Commonwealth of Dominica +1767
The Dominican Republic +1767
Croatia +385
Togo +228
Tokelau +690
Tonga +676
Trinidad and Tobago +1868
Tristan da Cunha +290
Tunisia +216
Turkey +90
Turkmenistan +993
Turks and Caicos Islands +1649
Tuvalu +688
U.S. Islands +0
Uganda +256
Ukraine +380
United Arab Emirates +971
Uruguay +598
Virgin Islands (U.S.) +1340
Uzbekistan +998
Vanuatu +678
Vatican City State (Holy See) +379
Venezuela +58
France, DOM-TOM Wallis and Futuna +681
Western Sahara +210
Yemen +967
Zambia +260
Zimbabwe +263

Company Name

Message*

Frequently Asked Questions

Our most frequently asked questions

Does Rolan Cable offer customized cables for special needs?

Yes, we offer personalized customization options for cables. There are two methods available:
1. Customer-Supplied Designs

2. Custom Design Based on Requirements

How to order cables from Rolan Cable?

1. Consultation and Quote: Speak to our cable specialist about the cable product you need and get a price quote.Contact our cable specialists for a quotation.

2. Order Confirmation: Confirm the price, quantity, and type of cables with our cable specialist, then sign the contract.

3. Payment: Make the payment via Telegraphic Transfer (TT).

4. Delivery Arrangement: Our Rolan Cable specialist will arrange for your delivery. Delivery time depends on the shipping method and destination.Our specialist will keep you updated on the shipping status and provide all necessary information.

When will my order be sent out?

We support EXW, FOB and CIF terms, with sea, air and express shipping options. Delivery arrangements depend on order quantity, destination and customer requirements.

What is the delivery time?

For standard cables, delivery takes 7–15 working days. For customized cables, it is about 15–25 working days after order confirmation.

Please note that these times are estimates and can vary. To get a delivery time for your destination, please talk to our specialist to confirm an estimated delivery time.

What after-sales services do Rolan Cable offer?

We offer comprehensive after-sales support. If there are any quality issues with our products, we pledge to collaborate with you to find a solution within 48 hours.

What is the MOQ for custom cables?

MOQ depends on cable type; small orders for special specifications are acceptable.

How can I get technical support for your cables?

You can contact our specialist for technical support.
We are available to assist you with any questions or issues you may have.

YFFB High-Flex Flat Traveling Cable

Description

15 Million Bending Cycles YFFB Flat Traveling Cable for Cranes and Drag Chains

Durable Flat Cable for Repeated Traveling Movement

15 Million Bending Cycles

Fine-Stranded Copper

Flexible PVC Compound

Oil and Chemical Resistance

Cold and Weather Resistance

Wide Specification Range

Actual YFFB Flat Traveling Cable Appearance

Flexible and Bend-Resistant

Multiple Core Arrangements

YFFB High-Flex Flat Cable Structure

Oxygen-Free Copper Conductor

Flexible Core Insulation

Parallel Core Arrangement

Grouped Multi-Core Structure

Special Flexible PVC Jacket

Built for Continuous Movement and Industrial Use

2 to 66 Core Options

Clear Cable Identification

YFFB Flat Traveling Cable Information

YFFB Standard Cable Configurations

Designed for Cranes and Traveling Machinery

Overhead Cranes

Gantry Cranes

Hoists

Retractable Doors

Drag Chain Systems

Elevator Equipment

Port Machinery

Industrial Equipment

OEM YFFB Flat Traveling Cable Manufacturing

YFFB Flat Traveling Cable FAQ

Looking for a High-Flex Flat Traveling Cable?

Contact Us

Frequently Asked Questions

Does Rolan Cable offer customized cables for special needs?

How to order cables from Rolan Cable?

When will my order be sent out?

What is the delivery time?

What after-sales services do Rolan Cable offer?

What is the MOQ for custom cables?

How can I get technical support for your cables?

Feature Products

TRVVPPS Individually Shielded Twisted Pair Drag Chain Cable

30 Million Cycles TRVVPS Twisted-Pair Shielded PUR Drag Chain Cable

15 Million Cycles TRVVPS Twisted-Pair Shielded Drag Chain Cable

10 Million Cycles TRVVPS Twisted-Pair Shielded Drag Chain Cable

Recently Viewed

YFFB High-Flex Flat Traveling Cable
