TVVB+2G is a reinforced flat elevator traveling cable featuring two load-bearing steel wire ropes, fine-stranded oxygen-free copper conductors, flexible PVC core insulation and a special elastic PVC outer jacket. It is designed for elevators, lifting equipment and other traveling systems requiring additional tensile support.

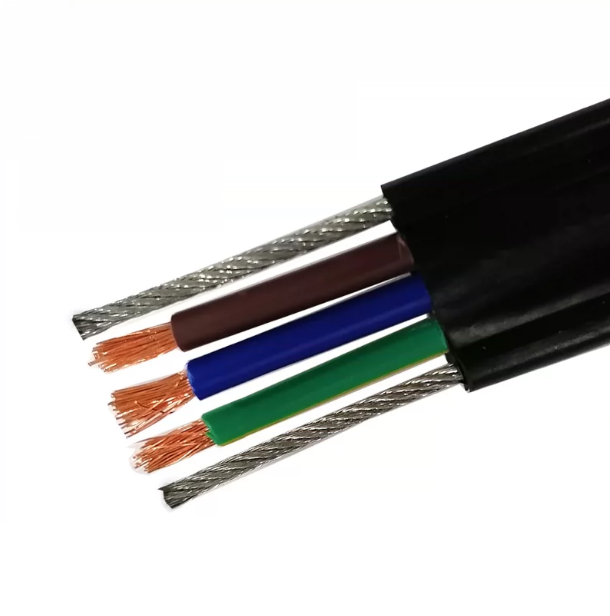

Two steel wire ropes provide mechanical support while the flexible flat cable body supplies power during repeated elevator movement.
Two steel wire ropes are positioned along the cable sides to carry tensile loads and reduce stress on the electrical conductors.
The flat in-line structure helps reduce twisting, improves installation organization and supports stable vertical traveling movement.
Fine-stranded oxygen-free copper conductors provide stable electrical conductivity and good flexibility during repeated bending.
The special PVC compound provides flexibility, abrasion resistance, aging resistance and protection in elevator environments.
The cable jacket provides flame-retardant performance for compatible elevator and lifting equipment installations.
The outer sheath provides resistance to wear, moisture, oil and weathering in compatible operating conditions.
Real product images show the flat cable body, flexible power conductors and double steel wire load-bearing structure.

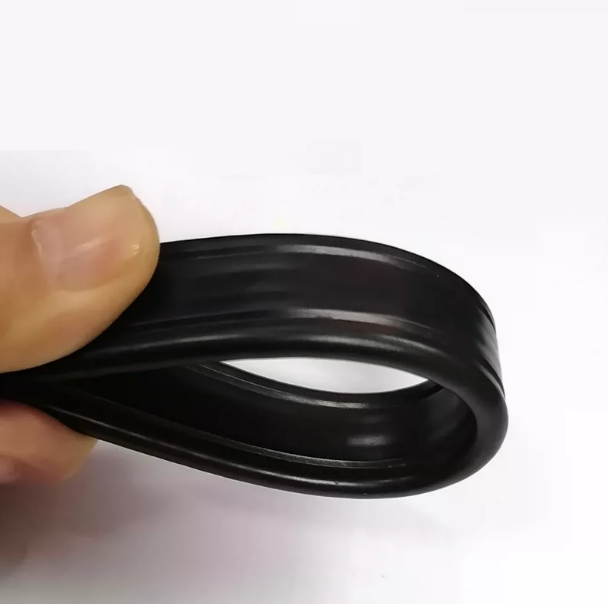

The elastic flat cable construction supports repeated elevator traveling movement and convenient cable routing.

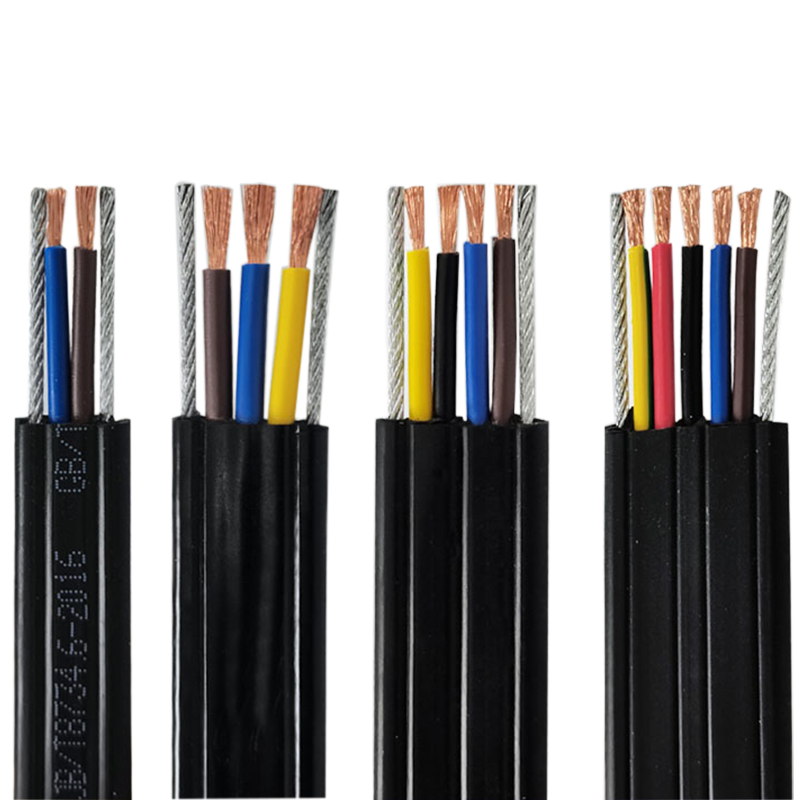

Standard versions cover 2 to 5 power cores with conductor sizes of 1.5mm², 2.5mm² and 4.0mm².

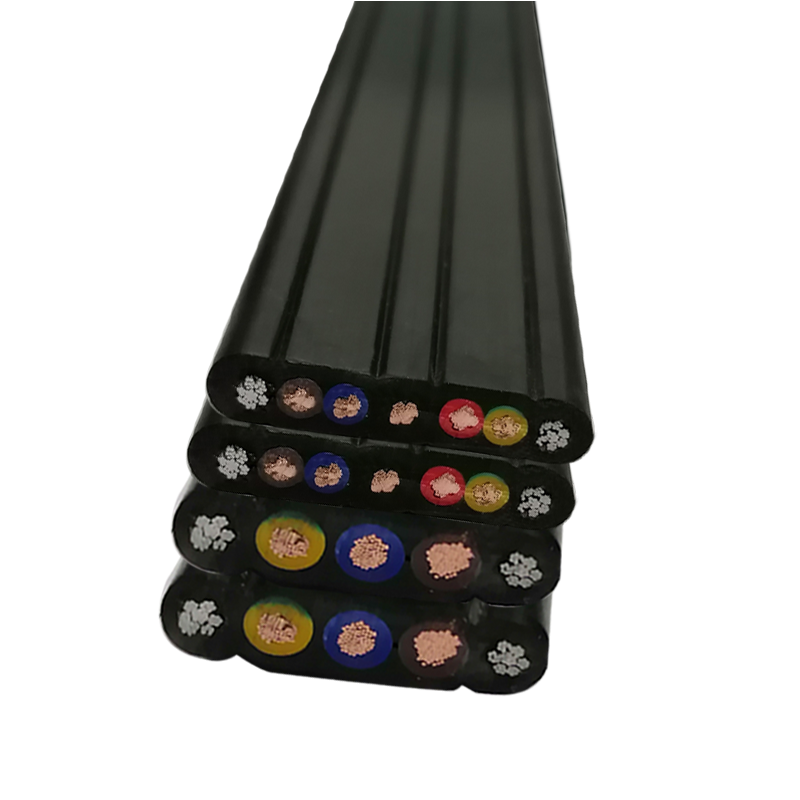

The electrical conductors and mechanical support ropes are integrated into one flat cable profile.

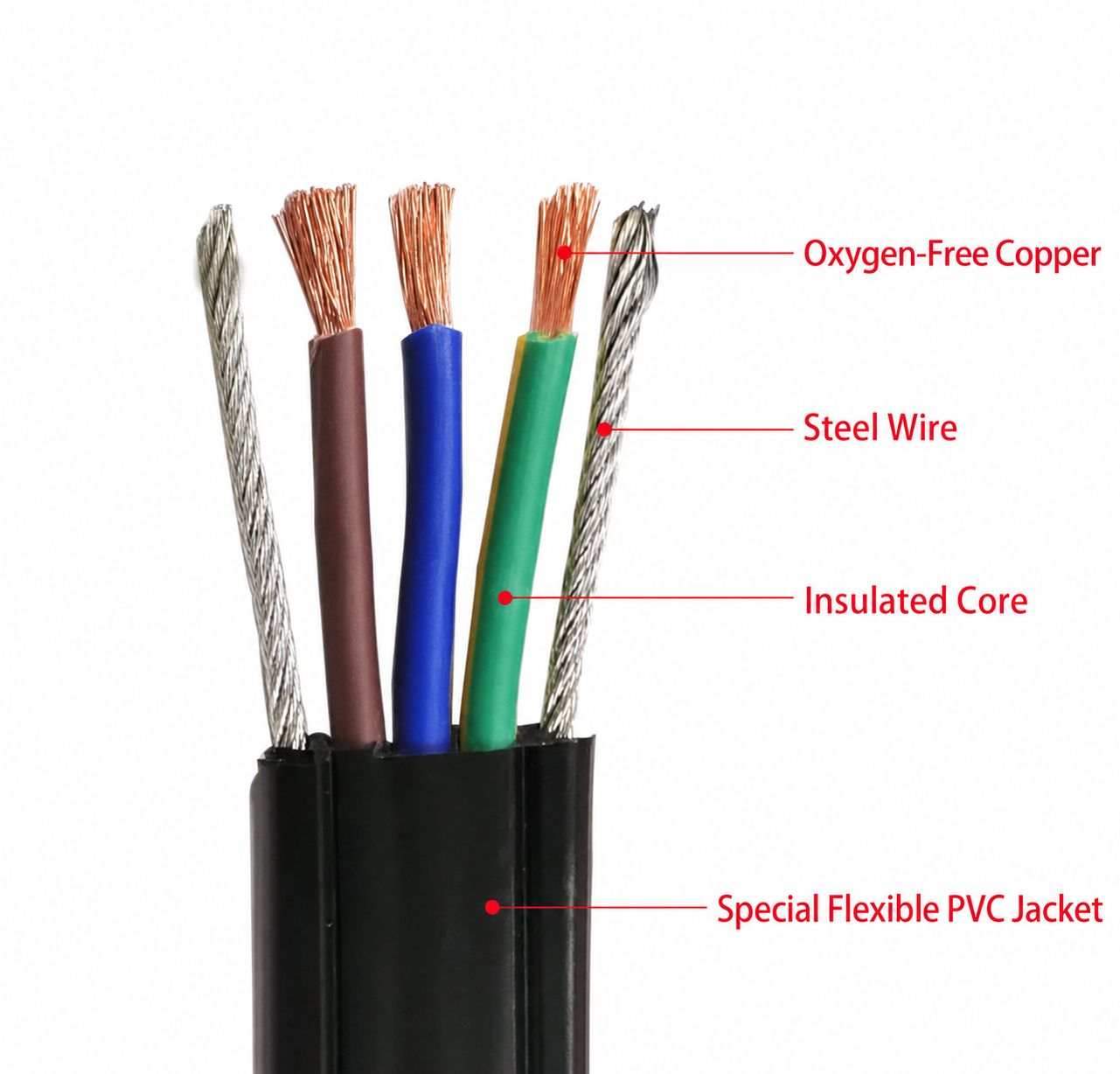

Fine-stranded bare copper conductors provide stable conductivity and flexibility for repeated elevator traveling movement.
Each conductor is insulated with a flexible special PVC compound to provide electrical protection and core separation.
The insulated conductors are arranged in parallel to form a stable flat cable body for elevator suspension systems.
Steel wire ropes are installed on both sides of the cable to provide tensile support and load-bearing performance.
The black flat outer jacket provides flexibility, wear resistance, moisture protection and mechanical durability.
The reinforced construction combines electrical transmission with mechanical support for demanding elevator traveling applications.
The outer material is designed to stop burning after the flame source is removed, helping improve equipment wiring safety.
Multiple standard sizes are available with black flat outer jackets and steel support ropes positioned on both sides.
Standard dimensions, conductor structures and core colors based on the supplied TVVB+2G specification data.
| Model | Specification | Weight / 100m | Thickness | Finished Width | Conductor Structure | Core Colors |
|---|---|---|---|---|---|---|
| 1.5mm² Standard Configurations | ||||||
| TVVB+2G | 2 × 1.5mm² | 15.92kg | 4.9mm | 14.4mm | 48 / 0.20BC | Blue / Brown |
| TVVB+2G | 3 × 1.5mm² | 19.12kg | 4.9mm | 17.4mm | 48 / 0.20BC | Blue / Brown / Yellow-Green |
| TVVB+2G | 4 × 1.5mm² | 22.75kg | 4.9mm | 21.0mm | 48 / 0.20BC | Blue / Brown / Black / Yellow-Green |
| TVVB+2G | 5 × 1.5mm² | 26.52kg | 4.9mm | 24.8mm | 48 / 0.20BC | Red / Black / Brown / Blue / Yellow-Green |
| 2.5mm² Standard Configurations | ||||||
| TVVB+2G | 2 × 2.5mm² | 20.70kg | 5.6mm | 16.8mm | 79 / 0.20BC | Blue / Brown |
| TVVB+2G | 3 × 2.5mm² | 26.20kg | 5.6mm | 21.4mm | 79 / 0.20BC | Blue / Brown / Yellow-Green |
| TVVB+2G | 4 × 2.5mm² | 30.96kg | 5.6mm | 25.1mm | 79 / 0.20BC | Blue / Brown / Black / Yellow-Green |
| TVVB+2G | 5 × 2.5mm² | 36.54kg | 5.6mm | 29.8mm | 79 / 0.20BC | Red / Black / Brown / Blue / Yellow-Green |
| 4.0mm² Standard Configurations | ||||||
| TVVB+2G | 2 × 4.0mm² | 26.58kg | 6.6mm | 18.2mm | 80 / 0.25BC | Blue / Brown |
| TVVB+2G | 3 × 4.0mm² | 34.37kg | 6.6mm | 23.4mm | 80 / 0.25BC | Blue / Brown / Yellow-Green |
| TVVB+2G | 4 × 4.0mm² | 41.29kg | 6.6mm | 27.7mm | 80 / 0.25BC | Blue / Brown / Black / Yellow-Green |
| TVVB+2G | 5 × 4.0mm² | 49.18kg | 6.6mm | 33.0mm | 80 / 0.25BC | Red / Black / Brown / Blue / Yellow-Green |
Suitable for traveling connections requiring both electrical transmission and additional mechanical load-bearing support.
Traveling power cable for passenger elevator cars requiring flexible suspension movement.
Reinforced flexible cable for freight lifts and heavy-duty elevator installations.
Double steel wire support helps provide additional tensile performance for long elevator travel distances.
Suitable for building hoists, lifting platforms and compatible vertical moving equipment.
Power connection for compatible lifting, moving and suspended industrial machinery.
Flat traveling cable for equipment requiring repeated vertical movement and load support.
Flexible connection cable for compatible mobile lifting platforms and service equipment.
Used as an equipment connection cable in elevator and similar lifting systems.
