TVVB is a flat flexible elevator traveling cable designed for passenger elevators, freight elevators, lifting systems, retractable doors, cranes and other mobile electrical equipment. It features fine-stranded oxygen-free copper conductors, PVC-insulated cores and a durable special elastic PVC flat outer jacket.
The flat parallel structure helps reduce twisting, improves cable arrangement and supports repeated bending during elevator movement.
Fine-stranded copper conductors and elastic PVC materials provide excellent flexibility for repeated elevator movement.
The flat cable structure provides stable suspension, organized installation and smooth movement inside elevator shafts.
The special elastic PVC sheath provides resistance to abrasion, bending, aging and demanding elevator environments.
The outer jacket provides moisture and water resistance for compatible indoor elevator and lifting installations.
The special PVC jacket provides resistance to oil, acids and alkalis in compatible operating environments.
Durable materials and a flexible cable design help improve resistance to aging and repeated mechanical movement.

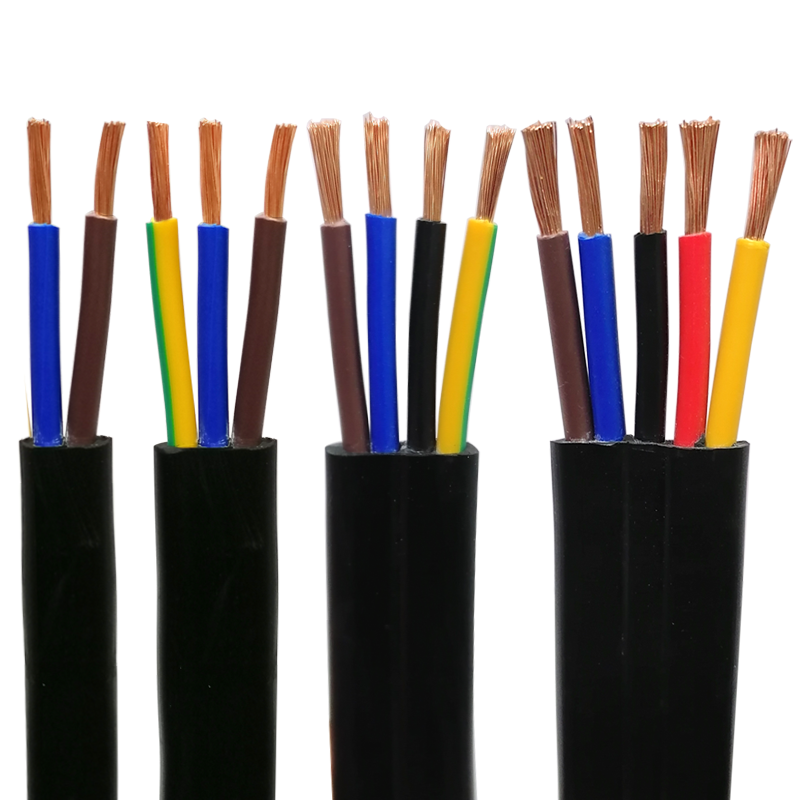

Real product photographs show the flat PVC jacket, multiple conductor configurations and flexible cable body.
The cable maintains a soft flat profile for continuous vertical elevator movement and repeated bending.

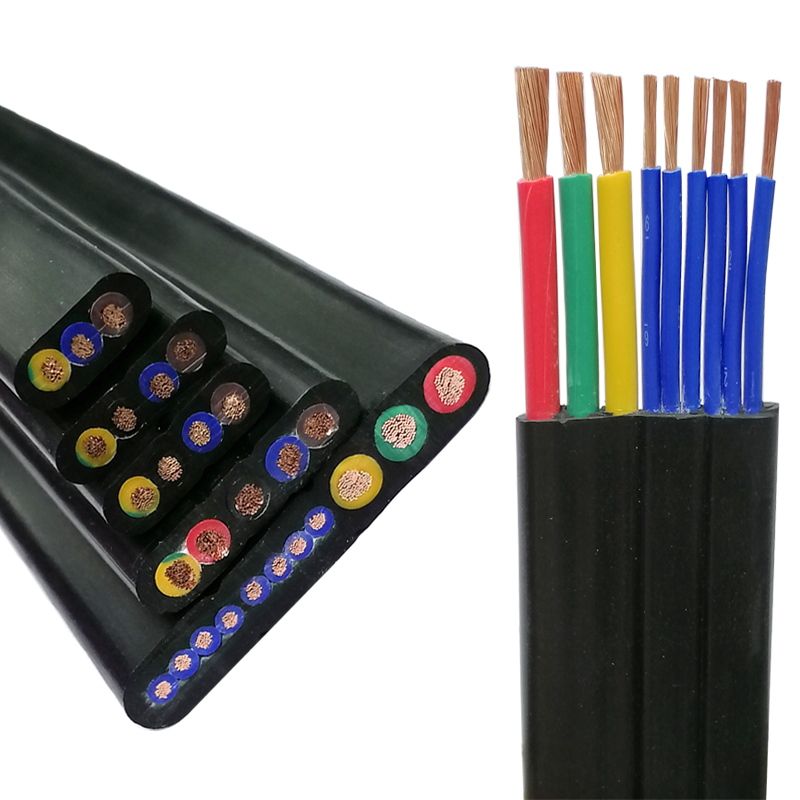

Standard options cover 2 to 11 cores, with conductor sizes from 1.5mm² to 4.0mm² and composite power-control structures.

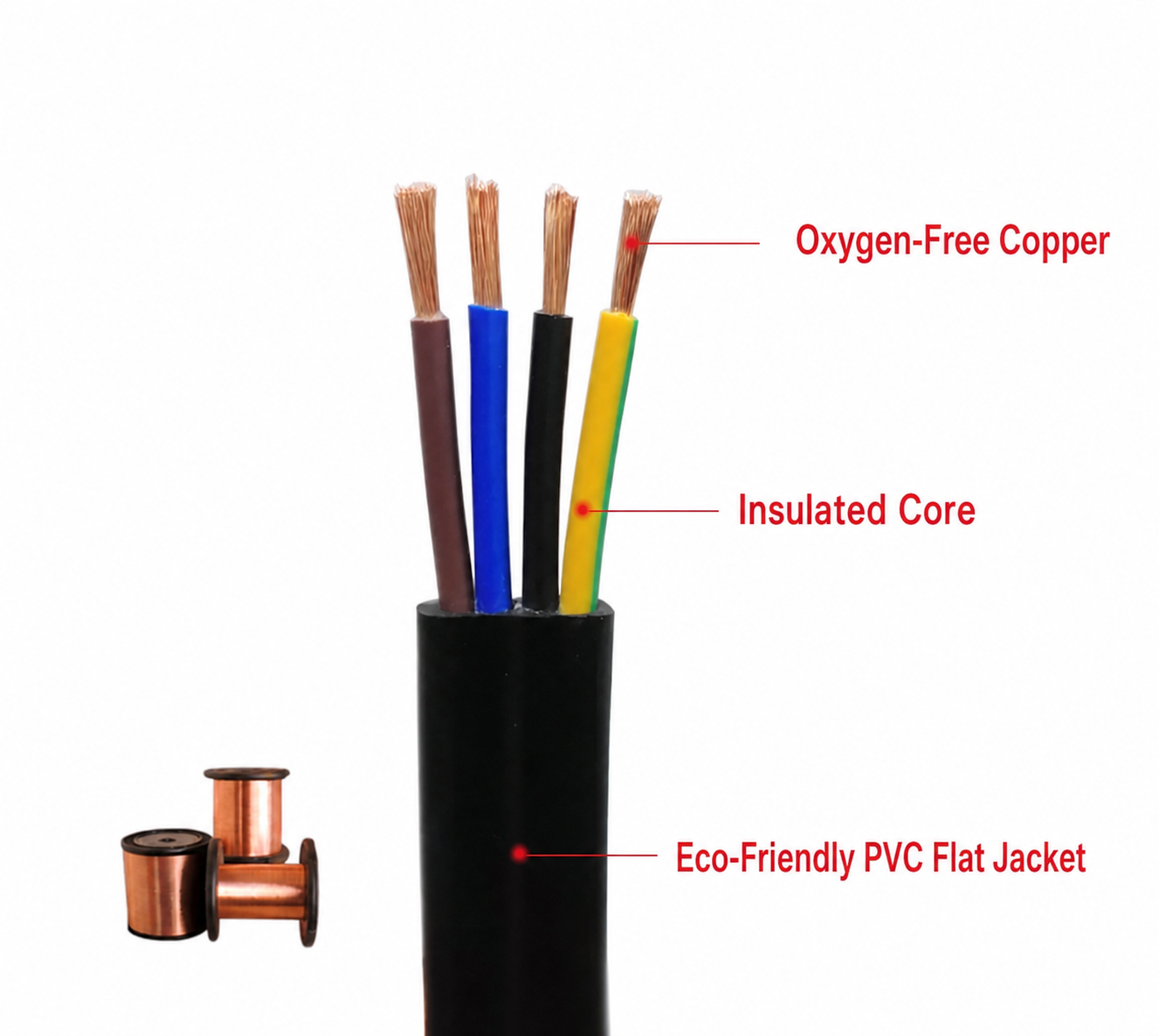

A simple and reliable flat cable structure designed for elevator power, connection and mobile lifting systems.

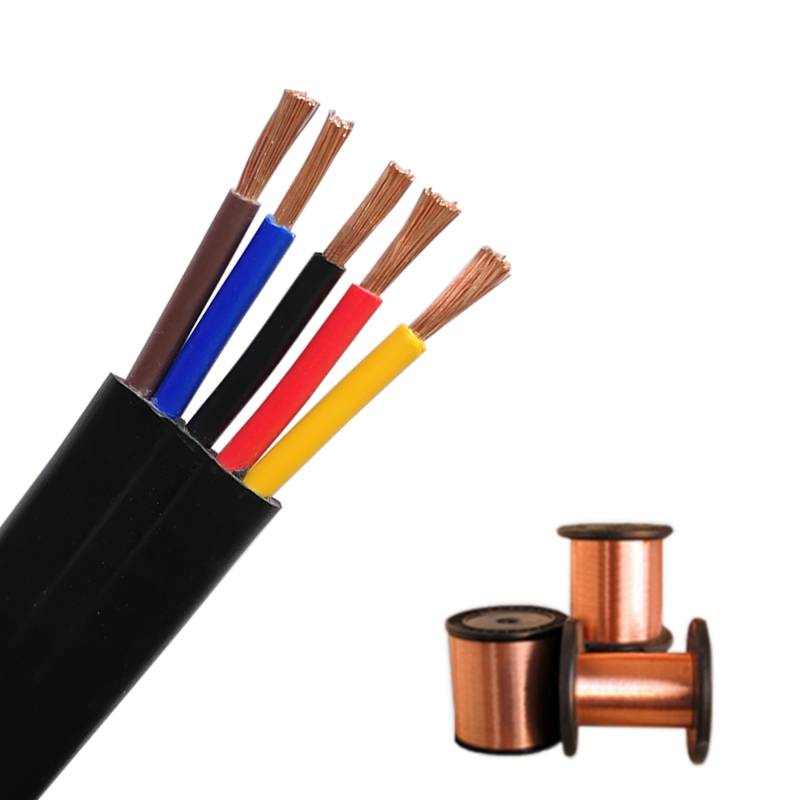

Fine-stranded oxygen-free copper conductors provide good conductivity, flexibility and stable power transmission.
Each copper conductor is covered with flexible PVC insulation to provide electrical protection and core separation.
The insulated cores are arranged in parallel to create a stable flat cable profile for elevator suspension systems.
The black flat outer sheath provides flexibility, abrasion resistance, weather resistance and mechanical protection.
The flat cable structure distributes mechanical stress across the cable width and supports smooth elevator traveling movement.
Aging resistance, long service life, tensile resistance, moisture resistance, flexibility and abrasion resistance.

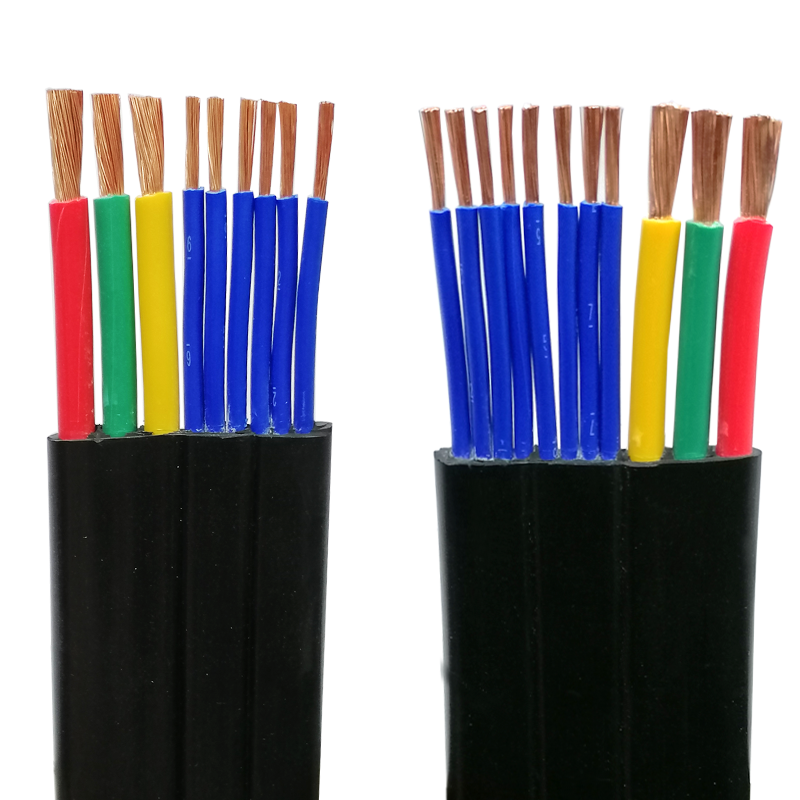

Available in power core, multi-core and combined power-control conductor configurations.
Standard cable dimensions and conductor structures based on the supplied TVVB product specification table.
| Model | Specification | Weight / 100m | Thickness | Finished Width | Conductor Structure | Core Colors | Shape |
|---|---|---|---|---|---|---|---|
| 1.5mm² Standard Configurations | |||||||
| TVVB | 2 × 1.5mm² | 7.83kg | 4.9mm | 8.0mm | 48 / 0.20BC | Blue / Brown | Flat In-Line |
| TVVB | 3 × 1.5mm² | 11.25kg | 4.9mm | 11.3mm | 48 / 0.20BC | Blue / Brown / Yellow-Green | Flat In-Line |
| TVVB | 4 × 1.5mm² | 15.23kg | 4.9mm | 15.4mm | 48 / 0.20BC | Blue / Brown / Black / Yellow-Green | Flat In-Line |
| TVVB | 5 × 1.5mm² | 18.94kg | 4.9mm | 19.1mm | 48 / 0.20BC | Blue / Brown / Black / Red / Yellow-Green | Flat In-Line |
| 2.5mm² Standard Configurations | |||||||
| TVVB | 2 × 2.5mm² | 11.48kg | 5.6mm | 9.8mm | 79 / 0.20BC | Blue / Brown | Flat In-Line |
| TVVB | 3 × 2.5mm² | 16.98kg | 5.6mm | 14.4mm | 79 / 0.20BC | Blue / Brown / Yellow-Green | Flat In-Line |
| TVVB | 4 × 2.5mm² | 22.55kg | 5.6mm | 19.1mm | 79 / 0.20BC | Blue / Brown / Black / Yellow-Green | Flat In-Line |
| TVVB | 5 × 2.5mm² | 28.13kg | 5.6mm | 23.8mm | 79 / 0.20BC | Blue / Brown / Black / Red / Yellow-Green | Flat In-Line |
| 4.0mm² Standard Configurations | |||||||
| TVVB | 2 × 4.0mm² | 16.15kg | 6.6mm | 11.0mm | 80 / 0.25BC | Blue / Brown | Flat In-Line |
| TVVB | 3 × 4.0mm² | 23.94kg | 6.6mm | 16.2mm | 80 / 0.25BC | Blue / Brown / Yellow-Green | Flat In-Line |
| TVVB | 4 × 4.0mm² | 31.92kg | 6.6mm | 21.6mm | 80 / 0.25BC | Blue / Brown / Black / Yellow-Green | Flat In-Line |
| TVVB | 5 × 4.0mm² | 39.89kg | 6.6mm | 27.0mm | 80 / 0.25BC | Blue / Brown / Black / Red / Yellow-Green | Flat In-Line |
| Composite Power and Control Configurations | |||||||
| TVVB | 3 × 4 + 6 × 1.5mm² | 48.98kg | 6.6mm | 36.8mm | 80 / 0.25BC + 48 / 0.20BC | Yellow / Green / Red / Blue 1–6 | Flat In-Line |
| TVVB | 3 × 4 + 8 × 1.5mm² | 56.50kg | 6.6mm | 42.6mm | 80 / 0.25BC + 48 / 0.20BC | Yellow / Green / Red / Blue 1–8 | Flat In-Line |
| TVVB | 3 × 6 + 6 × 1.5mm² | 65.76kg | 7.8mm | 39.8mm | 120 / 0.25BC + 48 / 0.20BC | Yellow / Green / Red / Blue 1–6 | Flat In-Line |
| TVVB | 3 × 6 + 8 × 1.5mm² | 74.25kg | 7.8mm | 45.6mm | 120 / 0.25BC + 48 / 0.20BC | Yellow / Green / Red / Blue 1–8 | Flat In-Line |
Suitable for equipment connections requiring a flat flexible cable with repeated vertical or reciprocating movement.
Traveling power and control cable connections for passenger elevator systems.
Flexible cable solutions for freight lifts and heavy-duty elevator equipment.
Suitable for building lifts, lifting platforms and compatible vertical moving equipment.
Flat flexible cable connections for electric retractable gates and mobile door systems.
Power and control connections for compatible factory lifting and moving equipment.
Flexible cable connections for grab cranes, lifting machinery and material handling systems.
Suitable for reciprocating machinery requiring organized flat cable movement.
Connection cable for elevators and similar lifting or suspension systems.
ROLAN CABLE supports customized TVVB cable production for elevator manufacturers, lifting equipment suppliers, building projects and global cable distributors.
Send us the conductor size, number of cores, elevator travel height, operating speed, suspension length, cable width and installation environment.
