A cable specified for millions of bending cycles can still fail within months if it is installed incorrectly. In practice, early failures are not always caused by poor cable quality. A bend radius that is too small, a twisted cable, inadequate clearance or badly positioned strain relief can shorten service life before the machine reaches its expected maintenance interval.
The failure often appears gradually. The jacket becomes polished where it rubs against the carrier, the cable begins to corkscrew, or one conductor breaks intermittently and stops the machine only at a certain point in the travel. By then, replacing the cable is usually the only practical repair.
This article covers eight installation mistakes worth checking before blaming the cable.

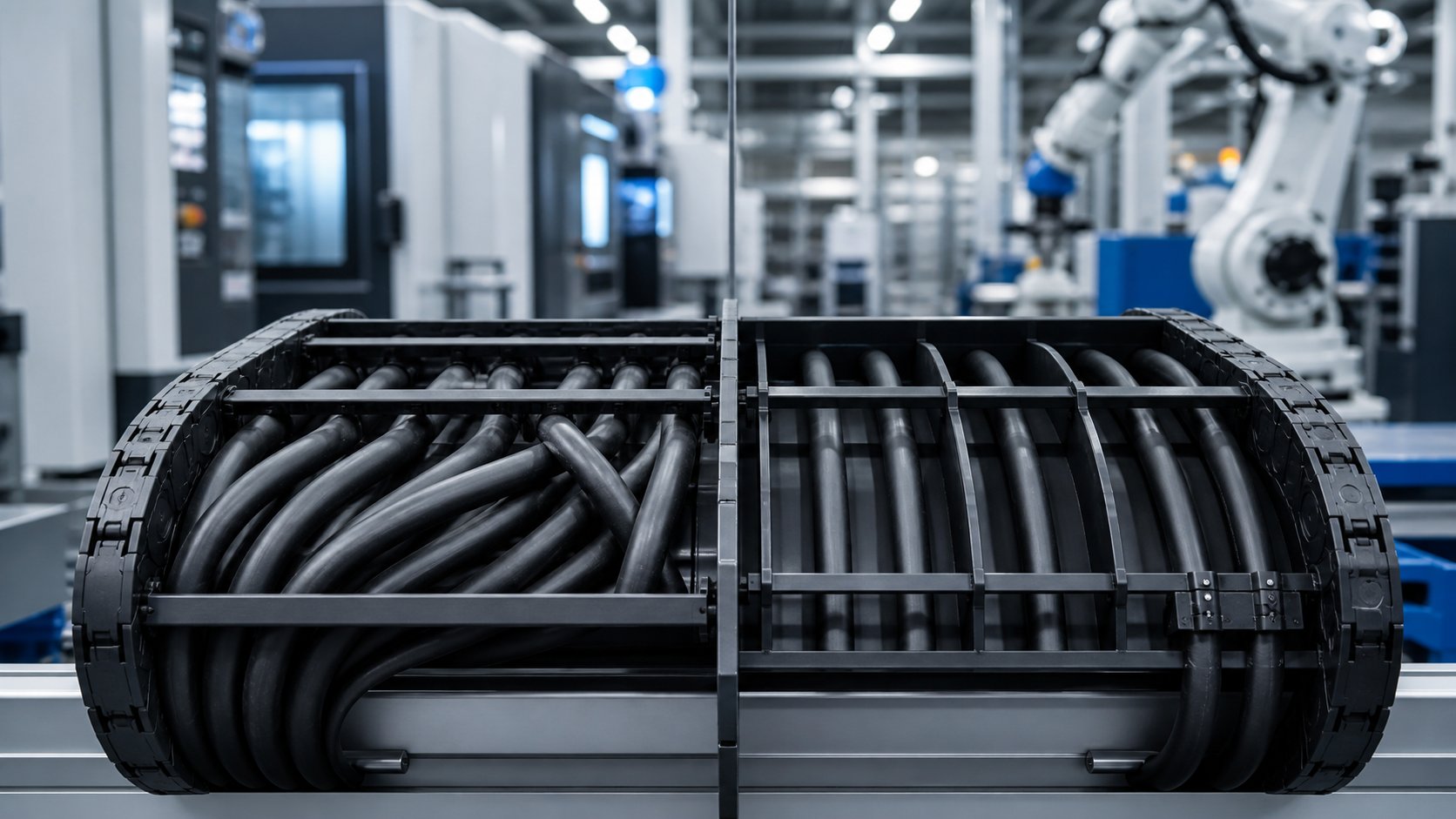

Cable arrangement, clearance and bend radius have a direct effect on service life.“Flexible” and “continuous flex” do not mean the same thing. A standard flexible control cable may be easy to bend during installation but still have a conductor lay, insulation system and jacket designed mainly for fixed use or occasional movement.
A genuine drag chain cable is built so its conductors and internal layers can move repeatedly without concentrating stress in one area. When an ordinary cable is placed in a fast reciprocating carrier, conductor strands may fatigue, the core assembly may deform, and the jacket can crack or twist.
Start with the operating conditions rather than a familiar cable name. Travel length, speed, acceleration, bend radius, cycle frequency and the working environment all matter. A cable suitable for a short, slow axis may not be suitable for a long-travel gantry running around the clock.
Every moving cable has a minimum dynamic bend radius. Installing it below that value forces the conductors, insulation and shielding to flex more sharply than intended.
This is especially damaging to shielded cables. The copper braid has to change geometry as it travels around the curve. With an undersized radius, braid wires can fatigue and break even while the outer jacket still looks normal.
Select the carrier radius according to the stiffest cable or hose in the package, not the smallest component. The value on the exact cable datasheet should take priority. Where space allows, using a radius larger than the stated minimum normally reduces mechanical stress.
One of the most common mistakes happens before the carrier starts moving. If a cable is pulled from the side of a coil or lifted off the flange of a reel, it can receive a twist for every turn removed.
That stored torsion has nowhere to go after the cable is fixed at both ends. During operation, the cable may corkscrew, press against the carrier sidewall or climb over neighboring cables. The resulting abrasion is often mistaken for a jacket-material problem.
Pay the cable off the reel in its natural direction. Lay it straight and allow it to relax before placing it in the carrier. Once installed, the printed marking should follow the cable without spiraling around it.
Cables need room to move as the carrier bends and straightens. If the fill package is compressed, adjacent jackets rub continuously and the cables cannot settle into their natural position.
A tightly packed carrier can cause:
Allow clearance around each cable and hose. Carrier manufacturers often publish recommended free-space values, so use the guidance for the selected system rather than filling every available millimeter.
Placing a small signal cable beside a large hydraulic hose may look acceptable while the carrier is stationary. In motion, the heavier component can push, roll over or trap the smaller cable.
Use dividers or shelves when cable diameters, weights or jacket materials differ significantly. Separation is also helpful when power and sensitive signal cables share the same carrier. It does not replace proper shielding and EMC design, but it improves organization and reduces mechanical contact.
Weight should be distributed as evenly as practical across the carrier. A package concentrated on one side can affect both the cables and the carrier itself.
The cable needs to move freely through the bending section, but it also needs secure strain relief near the fixed and moving ends. Clamping inside the active bend prevents the cable from finding its natural position and transfers tensile force into the conductors.
The opposite problem is leaving the cable unsupported. Movement can then reach the terminals or connectors, leading to loose contacts, conductor breakage or shield damage.
Use clamps designed for the cable diameter and jacket. They should hold the cable without crushing it. The position and required distance from the bending section depend on the carrier and cable system, so follow the relevant installation instructions rather than using one spacing rule for every machine.
Drag chain cables are normally tested for repeated bending in a defined plane. A robot joint or rotating head may add torsion at the same time. These are different mechanical loads.
A cable with a high bending-cycle rating is not automatically suitable for continuous twisting. If the application includes rotation, specify the torsion angle, unsupported length, number of cycles and movement pattern. A torsion-rated robot cable or a purpose-built hybrid construction may be required.
This distinction matters on six-axis robots, rotary tables and equipment where the carrier itself changes orientation during travel.
A cable package can look correct at one end of the machine and still bind at another point in the travel. Before normal production, run the axis slowly through its complete stroke and watch the cables in both directions.
Check for:
Correcting the layout during commissioning is far cheaper than finding an intermittent conductor fault after production begins.
The damaged area often provides a useful clue.
| Visible symptom | Possible cause to investigate |
|---|---|
| Jacket wear along one side | Twist, insufficient clearance or sidewall contact |
| Corkscrewing | Cable installed with torsion or unsuitable internal design |
| Conductor break near an end | Poor strain relief or repeated movement at the termination |
| Failure near the middle of the bend | Bend radius too small or cable not rated for the motion |
| Shield failure before conductor failure | Excessive bending stress or unsuitable shield construction |
| Several cables damaged together | Carrier layout, overfilling or alignment problem |
These are diagnostic starting points, not proof of a single cause. Machine movement, carrier condition, installation records and the cable construction should be reviewed together.
Before releasing a moving axis for production, confirm that:
It is also useful to photograph the installation after commissioning. A reference image makes it easier to spot changes during later inspections.
If a cable has already failed, replacing it with the same specification without checking the installation may repeat the problem. Record the old cable's failure location, the number of operating cycles, travel distance, speed, bend radius and exposure to oil or coolant.
For general moving power and control circuits, an unshielded TRVV drag chain cable may be suitable. Where electromagnetic interference is a concern, consider a TRVVP shielded cable. Twisted-pair TRVVPS cable is intended for compatible signal circuits, while PUR-jacketed constructions are often preferred where abrasion, oil or harsh industrial exposure is more demanding.
The final choice should be based on the complete datasheet and actual machine conditions, not only the cable model or advertised cycle number.
Long cable life depends on the cable and the installation working as one system. Even a well-designed high-flex cable can fail early when it is twisted, over-bent, crowded or poorly restrained.
Before ordering a replacement, check the carrier layout and identify the mechanical reason for the damage. ROLAN CABLE can recommend a standard or customized construction when provided with the core configuration, travel length, speed, acceleration, bend radius, cycle requirement and working environment.
