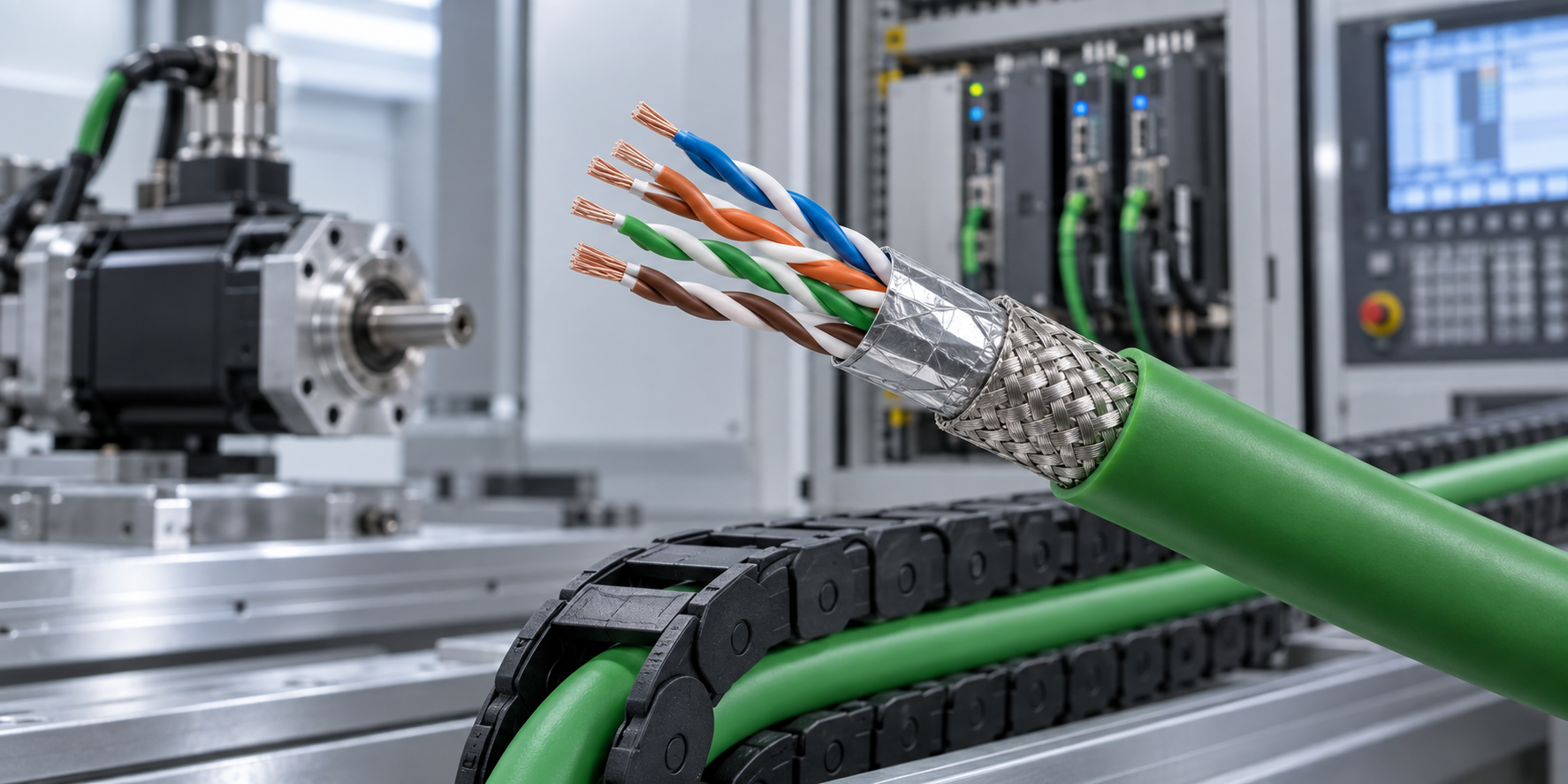

A servo encoder cable has to protect small feedback signals while moving beside motors, drives and power cables.
A servo motor can deliver plenty of torque and still perform poorly if its encoder signal is unreliable. Position errors, unstable speed, nuisance alarms and intermittent machine stops are often blamed on the drive or encoder first. In many cases, the real problem is the feedback cable or the way its shield is terminated.
Encoder and feedback circuits carry low-level, high-speed information between the motor and control system. At the same time, the cable may run near switching drives, motor power conductors and other sources of electromagnetic noise. If it is installed in a moving axis, it must also survive repeated bending without changing its electrical performance.

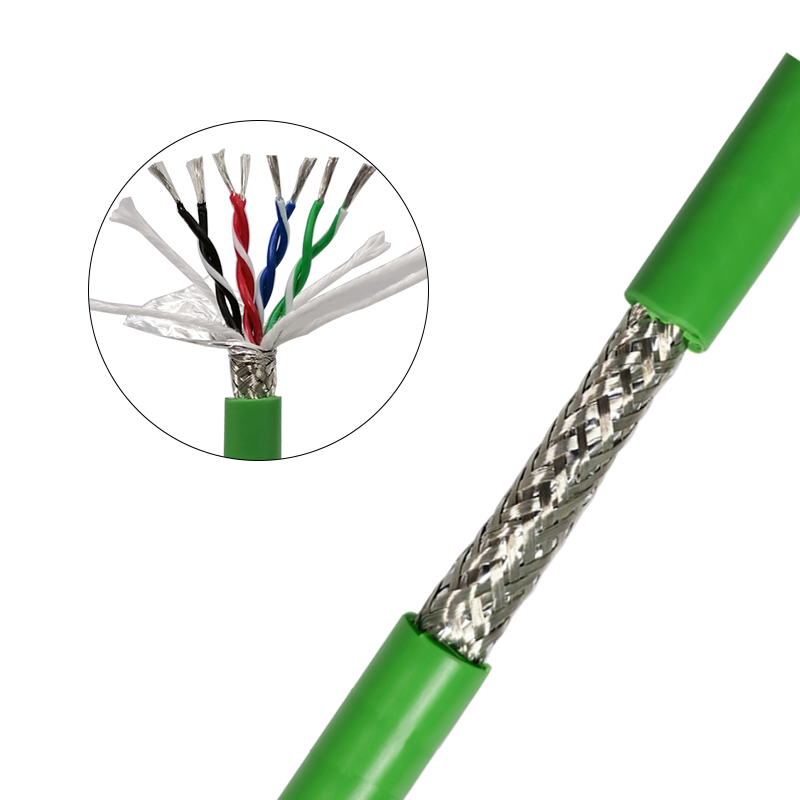

That combination explains why a purpose-built servo encoder and feedback cable commonly uses twisted conductor pairs, an aluminum-foil shield and a tinned-copper braided shield. Each feature solves a different part of the problem.
The exact signals depend on the motor and encoder design. A feedback cable may carry differential data channels, incremental pulse signals, absolute-position communication, sensor power, temperature signals or brake-related control circuits. These circuits are not interchangeable with the conductors inside a servo power cable.
The voltage and current may be modest, but the signal timing can be critical. A control system uses the feedback to determine shaft position, direction and speed. Noise that changes an edge, distorts a waveform or interrupts communication can affect the entire motion loop.
Before selecting a cable, obtain the motor and drive pinout. Confirm the number of pairs, conductor sizes, operating voltage, data protocol and whether any auxiliary conductors are required. A cable that merely has the same number of cores may still have the wrong pair arrangement or electrical characteristics.
Two conductors carrying a balanced signal are placed close together and twisted along the cable length. As the pair rotates, each conductor occupies nearly the same average position relative to an external noise source. Interference tends to couple into both conductors in a similar way, allowing a differential receiver to reject much of the common noise.
Twisting also helps control the electromagnetic field created by the signal itself. This reduces radiation from the pair and limits interaction with neighboring circuits. The result is more stable transmission than two parallel conductors would normally provide.
The twist is not decorative. Pair geometry, twist length, conductor insulation and manufacturing consistency all affect performance. Untwisting a long section during termination weakens the benefit, so pairs should remain twisted as close to the connector as practical.
Industrial servo systems create noise over a broad frequency range. A single shielding material does not perform equally well in every situation, especially when the cable must flex continuously.
Foil wraps closely around the cable core and can provide near-complete coverage. It is useful for reducing high-frequency electric-field interference and helps close small gaps that naturally exist in a braided screen.
Foil alone, however, is relatively delicate. Repeated bending can place stress on the foil and its drain-wire connection if the cable is not designed for dynamic use.
A tinned-copper braid consists of many fine wires woven around the cable core. It provides a low-resistance shielding path, remains mechanically flexible and is more robust during repeated movement than foil alone. The braid also helps protect and stabilize the inner cable structure.
Because a braid contains small openings, its coverage is not physically continuous. Braid density and coverage therefore matter.
An overall foil layer plus a dense copper braid provides broader interference protection than either layer by itself. In a well-designed encoder cable, the two shields work with the twisted pairs rather than replacing them. Twisting improves signal balance; foil improves coverage; braid provides a flexible, low-impedance screen.
It is easy to assume that a thick shield makes pair geometry less important. That is incorrect.
| Cable feature | Main purpose | What it does not solve by itself |
|---|---|---|
| Twisted pairs | Improve signal balance and reduce magnetic pickup and crosstalk | Do not block all external electric-field interference |
| Aluminum foil | Provides broad overall coverage against high-frequency noise | Is not the most durable shield for repeated movement on its own |
| Copper braid | Provides a flexible, low-resistance shielding path | Has small openings and cannot correct poor pair balance |
| Flexible cable construction | Survives repeated bending in moving equipment | Does not guarantee signal integrity without correct pair and shield design |
Good encoder performance comes from the complete construction and correct installation—not from one specification in isolation.
A general flexible encoder cable may be easy to bend by hand but still fail in a drag chain. Continuous-flex duty repeatedly stresses the conductor strands, insulation, fillers, foil, braid and jacket at the same bending point.
A high-flex encoder cable typically needs:
Rolan Cable's BMQ servo encoder cable, for example, uses fine-stranded tinned-copper conductors, twisted pairs, aluminum foil, a tinned-copper braided shield and an elastic PVC jacket. The published design is rated up to 20 million bending cycles under specified conditions. Actual life still depends on radius, speed, acceleration, travel, installation and environment.
Dual overall shielding surrounds the complete group of twisted pairs. This is suitable for many servo encoder and feedback applications because it protects the cable from external noise while keeping the cable reasonably compact and flexible.
Individual pair shielding places a separate shield around each pair. It can provide greater separation when several sensitive signal circuits share one cable, but it also increases diameter, weight, complexity and cost. It should be selected when the signal design or equipment manufacturer requires it—not simply because more shielding sounds better.
Ask these questions:
Even an excellent cable can perform badly when its shield is connected through a long, thin pigtail. At high frequencies, that pigtail adds impedance and reduces shielding effectiveness.
Where the connector and drive instructions permit, a 360-degree shield termination provides a short, low-impedance connection around the cable circumference. The braid should be exposed carefully without damaging conductor insulation, and the termination method should provide strain relief without crushing the cable.
Grounding practice must follow the servo-system manufacturer and the machine's EMC design. Whether the shield is bonded at one end or both ends depends on the equipment, signal type, connector system and applicable installation standard. A generic rule should not override the drive manufacturer's instructions.
Shielding reduces noise pickup, but cable routing still matters. Servo power cables carry rapidly switched currents and can generate strong electromagnetic fields. Running the encoder cable tightly alongside the power cable for a long distance increases coupling.
Where practical:
Mechanical separation is often more effective than trying to correct a noise problem later with additional grounding changes.
A cable can have suitable shielding but the wrong mechanical construction. Repeated movement may break conductors, loosen the braid or damage the foil long before the machine reaches its expected service interval.
Two 12-core cables are not necessarily equivalent. One may contain six controlled twisted pairs, while another contains twelve cores laid together without the required pairing.
The cable outside diameter, pair layout, conductor size and shield termination must fit the connector. A cable that cannot be terminated correctly is not a practical substitute.
A tight radius accelerates conductor and shield fatigue. Use the dynamic bending radius stated for the selected cable, not the smaller fixed-installation value.
Loose glands, long drain wires, incomplete braid contact and painted mounting surfaces can interrupt the intended shielding path. Inspect the complete connection from motor to drive.
Provide the following details when requesting a cable or quotation:
Supplying the original drawing is especially helpful. It allows the manufacturer to check pair allocation, shield arrangement, finished diameter and connector compatibility before producing a sample.
An intermittent encoder alarm does not automatically prove that the cable is defective. Start with the error history and note whether the fault appears at a particular axis position, speed or machine temperature. A fault that repeats at the same drag-chain location may indicate a mechanically damaged conductor or shield.
Inspect the cable for jacket abrasion, flattening, corkscrewing and movement at the strain-relief points. Verify connector seating and shield contact. If the fault appears only when a nearby motor or VFD starts, review cable separation and grounding. Electrical testing should be performed with the equipment safely isolated and according to the machine manufacturer's procedures.
Replacing the cable without correcting the routing or termination may only postpone the same failure.
No. A servo power cable carries motor current, while an encoder cable carries position, speed and feedback signals. Their conductor sizes, pair arrangements, shielding and electrical requirements differ.
Twisted pairs help both conductors receive similar external interference. A differential receiver can reject much of this common noise, improving signal stability.
In this context, dual shielding means an aluminum-foil overall shield combined with a tinned-copper braided overall shield. It does not necessarily mean that every pair has its own shield.
Only if the complete cable is designed for continuous flexing. Shielding alone does not make a cable suitable for repeated movement.
Follow the motor, drive and machine manufacturer's EMC instructions. The correct arrangement depends on the system design and should not be decided by a universal rule.
Reliable servo feedback depends on more than adding a metal screen around ordinary conductors. Twisted pairs, foil coverage, copper braid, continuous-flex construction, connector termination, grounding and cable routing must work together.
Explore Rolan Cable's servo encoder and feedback cable range, or contact our cable team with your motor model, pinout, pair count and movement requirements. We can review the cable construction before sample production or quotation.
